OptiSource, LLC is a manufacturer of laser quality optical components in prototype or OEM quantities. Small and responsive, the customer benefits from a lack of large company overhead costs. Conversely, OptiSource, LLC incorporates many of the technical, manufacturing, quality, and metrology advantages of a large company. OptiSource, LLC is located in Albuquerque, NM.


产品列表:

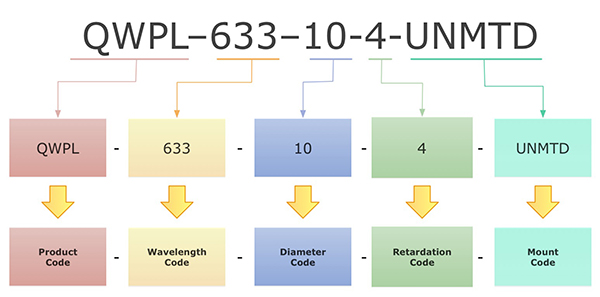

1、waveplates:

Multiple-Order

Zero-Order

Low-Order

Ultra-Thin

Dual-Order

Compound Dual-Order

Achromatic

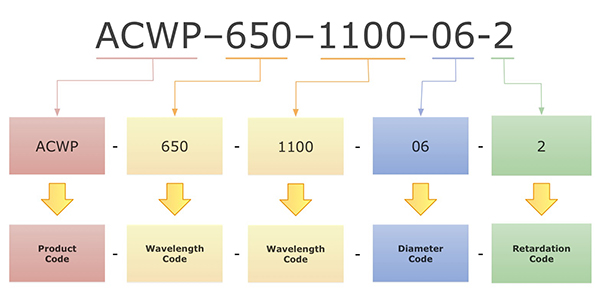

Product Code: ACWP

  • Substrate Materials: Synthetic Crystal Quartz / Magnesium Flouride

  • Achromatic Waveplates are available an air-spaced assembly

  • Polarization stability over broad bandwidths

  • Transmitted Wavefront distortion

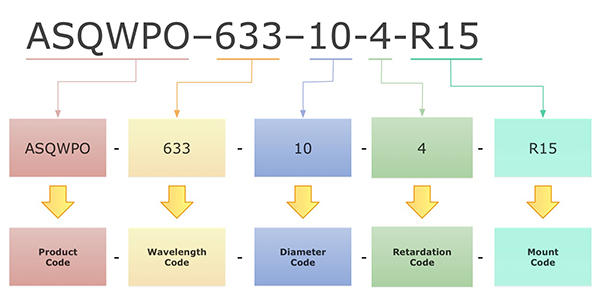

Component Ø (mm)Component Ø CodeMinimum Mount Clear Aperture (mm)Mount Ø (mm)Mount Ø Code
15.00613.025.4R10
25.41022.130.0R12

Standard wavelength regions: 450nm-650nm550nm-750nm650nm-1100nm1050nm-1500nm

Polarization Rotators

Rotators
Wavelength (nm)Diameter (mm) D*Part Number 45°Transmitted WavefrontPart Number 90°Transmitted Wavefront
355.025.4 or 12.7RT-D*-355.0-45λ/10RT-D*-355.0-90λ/10
532.025.4 or 12.7RT-D*-532.0-45λ/10RT-D*-532.0-90λ/10
1030.025.4 or 12.7RT-D*-1030.0-45λ/10RT-D*-1030.0-90λ/10
1047.025.4 or 12.7RT-D*-1047.0-45λ/10RT-D*-1047.0-90λ/10
1053.025.4 or 12.7RT-D*-1053.0-45λ/10RT-D*-1053.0-90λ/10
1064.025.4 or 12.7RT-D*-1064.0-45λ/10RT-D*-1064.0-90λ/10




Standard Rotator Wavelengths (nm)



3555321030
104710531064

Diameter Code (D*)Standard Diameters (mm)
0512.7
1025.4

Standard Rotations (in Degrees)
45
90

Polarization Depolarizers

Product Code: DPL

  • Polarization Depolarizers are available coated or uncoated

  • Polarization Depolarizers are available air-spaced and mounted only


Thin Film Plate Polarizers

Product Code: TFP

Wavelength specific

  • Angle tuning is suggested to achieve maximum transmission (typical tuning angle is 53°-59°)

  • If you are unable to find the substrate you desire, please call OptiSource Technical Sales regarding a quotation for your prototype or OEM requirement


2、Windows

Plane Window Configurations
Product NumberDiameter (mm)Thickness (mm)Surface QualitySurface FigureMaterial
PW-0512-XX12.703.1810–5λ/10 @ 633nmUV, BK-7
PW-0525-XX12.706.3510–5λ/10 @ 633nmUV, BK-7
PW-0537-XX12.709.5310–5λ/10 @ 633nmUV, BK-7
PW-1004-XX25.401.0010–5λ/4 @ 633nmUV, BK-7
PW-1012-XX25.403.1810–5λ/4 @ 633nmUV, BK-7
PW-1025-XX25.406.3510–5λ/10 @ 633nmUV, BK-7
PW-1037-XX25.409.5310–5λ/10 @ 633nmUV, BK-7
PW-1525-XX38.106.3510–5λ/10 @ 633nmUV, BK-7
PW-1537-XX38.109.5310–5λ/10 @ 633nmUV, BK-7
PW-2025-XX50.806.3510–5λ/10 @ 633nmUV, BK-7
PW-2037-XX50.809.5310–5λ/10 @ 633nmUV, BK-7
PW-3037-XX76.209.5310–5λ/10 @ 633nmUV, BK-7
PW-3050-XX76.2012.7010–5λ/10 @ 633nmUV, BK-7
PW-4050-XX101.6012.7010–5λ/10 @ 633nmUV, BK-7

Square/Rectangular

Rectangular Windows Configurations
Product NumberLength (mm)Width (mm)Thickness (mm)Surface QualitySurface FigureMaterial
RW-28.6-14.3-3.18-XX28.6014.303.1810–5λ/4 @ 633nmUV, BK-7
RW-40.0-30.0-5.00-XX40.0030.005.0010–5λ/10 @ 633nmUV, BK-7

Square Windows Configurations
Product NumberLength (mm)Width (mm)Thickness (mm)Surface QualitySurface FigureMaterial
SQW-0525-XX12.712.76.3510–5λ/10 @ 633nmUV, BK-7
SQW-1025-XX25.425.46.3510–5λ/10 @ 633nmUV, BK-7
SQW-1037-XX25.425.49.5310–5λ/10 @ 633nmUV, BK-7
SQW-2037-XX50.850.89.5310–5λ/10 @ 633nmUV, BK-7

Elliptical

45° Ellipse – UV Grade Fused Silica

Specifications –
TWD: λ/10 @ 633nm
Surface Quality: 10-5
Diameter Tolerance: +0.00/-0.25mm
Thickness Tolerance: +/- 0.25mm
Wedge: ≤5 minutes
Chamfer: None
Clear Aperture: Central 85% of Dimension

Brewster Windows – UV Grade Fused Silica

Specifications –
TWD: λ/10 @ 633nm
Surface Quality: 10-5
Diameter Tolerance: +0.00/-0.25mm
Thickness Tolerance: +/- 0.25mm
Wedge: ≤ 10 seconds
Chamfer: None
Clear Aperture: Central 85% of Dimension

Solid Etalons

Specifications –
TWD: λ/10 @ 633nm
Surface Quality: 10-5
Diameter Tolerance: +0.00/-0.25mm
Thickness Tolerance: +/- 0.25mm
Wedge: ≤1 arc second
Chamfer: 0.35mm X 45o Typical
Clear Aperture: Central 85% of Dimension

Solid Etalons (ET) Configurations
Product NumberDiameter (mm)Thickness (mm)Surface QualityMaterial
ET-10-0.10-UV25.400.1010–5UV
ET-10-0.25-UV25.400.2510–5UV
ET-10-0.30-UV25.400.3010–5UV
ET-10-0.50-UV25.400.5010–5UV
ET-10-0.70-UV25.400.7010–5UV
ET-10-1.00-UV25.401.0010–5UV
ET-10-1.50-UV25.401.5010–5UV
ET-10-2.00-UV25.402.0010–5UV
ET-10-3.00-UV25.403.0010–5UV
ET-10-4.00-UV25.404.0010–5UV
ET-10-5.00-UV25.405.0010–5UV
ET-10-6.00-UV25.406.0010–5UV
ET-10-7.00-UV25.407.0010–5UV
ET-10-8.00-UV25.408.0010–5UV
ET-10-10.00-UV25.4010.0010–5UV
ET-10-10.50-UV25.4010.5010–5UV
ET-10-15.00-UV25.4015.0010–5UV

Wedged

Specifications
Surface Figure λ/10 @ 633nm
Surface Quality: 10-5
Diameter Tolerance: +0.00/-0.25mm
Thickness Tolerance: +/- 0.25mm
Wedge: Specified Wedge +/- 5 minutes
Wedge Identified by Arrow at thickest point of piece
pointing to the parallel (non-wedged side)
Chamfer: 0.35mm X 45° Typical
Clear Aperture: Central 85% of Dimension

Interferometer Flats Configurations
Product NumberDiameter (mm)Thickness (mm)Surface QualitySurface FigureMaterial
IF-1025-XX25.406.3510–5λ/10 @ 633nmUV, BK-7
IF-1037-XX25.409.5310–5λ/10 @ 633nmUV, BK-7
IF-2025-XX50.806.3510–5λ/10 @ 633nmUV, BK-7
IF-2037-XX50.809.5310–5λ/10 @ 633nmUV, BK-7
IF-3050-XX76.2012.7010–5λ/10 @ 633nmUV, BK-7
IF-4050-XX101.6012.7010–5λ/10 @ 633nmUV, BK-7

Large Wedges Configurations
Product NumberDiameter (mm)Thickness (mm)Surface QualitySurface FigureMaterial
LW-X-1025-XX25.406.3510–5λ/10 @ 633nmUV, BK-7
LW-X-1037-XX25.409.5310–5λ/10 @ 633nmUV, BK-7
LW-X-2037-XX50.809.5310–5λ/10 @ 633nmUV, BK-7
LW-X-3050-XX76.2012.7010–5λ/10 @ 633nmUV, BK-7

Plane Parallel

Specifications
Surface Figure λ/10 @ 633nm
Surface Quality: 10-5
Diameter Tolerance: +0.00/-0.25mm
Thickness Tolerance: +/- 0.25mm
Wedge: ≤10 arc second
Chamfer: 0.35mm X 45° Typical
Clear Aperture: Central 85% of Dimension

Parallel Window Configurations
Product NumberDiameter (mm)Thickness (mm)Surface QualitySurface FigureMaterial
PW1-0525-XX12.706.3510–5λ/10 @ 633nmUV, BK-7
PW1-0537-XX12.709.5310–5λ/10 @ 633nmUV, BK-7
PW1-1012-XX25.403.1810–5λ/10 @ 633nmUV, BK-7
PW1-1025-XX25.406.3510–5λ/10 @ 633nmUV, BK-7
PW1-1037-XX25.409.5310–5λ/10 @ 633nmUV, BK-7
PW1-1525-XX38.106.3510–5λ/10 @ 633nmUV, BK-7
PW1-1537-XX38.109.5310–5λ/10 @ 633nmUV, BK-7
PW1-2025-XX50.806.3510–5λ/10 @ 633nmUV, BK-7
PW1-2037-XX50.809.5310–5λ/10 @ 633nmUV, BK-7
PW1-3037-XX76.209.5310–5λ/10 @ 633nmUV, BK-7
PW1-3050-XX76.2012.7010–5λ/10 @ 633nmUV, BK-7
PW1-4050-XX101.6012.7010–5λ/10 @ 633nmUV, BK-7


3、Mirrors

General Mirror Substrate Specifications

Materials: BK-7, UVFS, ZerodurTM
Standard Thickness Range: Product Dependent
Surface Figure: λ10 @ 632.8nm over clear aperture (λ/20 for ZerodurTM)
Parallelism: 5 arc minutes
Clear Aperture: 85% of central dimension
Dimensional Tolerance:
Diameter/length/Width: +0.00 / -0.250mm

Thickness: +/-0.250mm std.

Chamfer: 0.350mm X 45° typical


Standard Laser Mirror Coating Types

Excimer Cavity Laser Mirrors, Excimer Mirrors – ArF(193nm); KrF(248nm); XeCl(308nm); XeF(351nm-353nm) N2 Laser Mirrors (337nm); He-Cd Laser Mirrors(442nm, 325nm)

Ar-Ion Laser Mirrors (448nm, 514.5nm); Copper Vapor Laser Mirrors (511nm, 578nm), He-Ne laser mirrors (632.8nm); Ruby Laser mirrors (694.3nm, 348nm);

Alexandrite laser Mirrors (720nm – 780nm), Ultrafast Laser Mirrors (710nm-830nm, 770nm-900nm)

Nd:YAG, Nd:YLF Laser Mirrors (1064nm, 532nm, 355nm, 266nm), YAG Harmonic Beamsplitter mirrors (1064nm, 532nm, 355nm, 266nm); Double Wavelength YAG Laser iros (1064nm/532nm); Double Wavelength YAG Mirrors (1064nm / 633nm or 670nm)

Forsterite laser Mirrors (1235nm), Iodine Laser mirrors (1315nm), Er: glass Laser Mirrors (1540nm), Tm:YAG Laser Mirrors (2010nm); Ho:YAG Laser Mirrors(2100nm)

Diode Laser Mirrors (670nm, 780nm, 803nm, 905nm, 980nm)

Semiconductor Laser Mirrors for Telecom (1319nm, 1550nm)

Subtrates

Plane Mirrors Configurations
Product NumberDiameter (mm)Thickness (mm)Surface QualitySurface FigureMaterial
PM-0525-XX12.706.3510–5λ/10 @ 633nmUV, BK-7
PM-0537-XX12.709.5310–5λ/10 @ 633nmUV, BK-7
PM-1025-XX25.406.3510–5λ/10 @ 633nmUV, BK-7, Zer
PM-1037-XX25.409.5310–5λ/10 @ 633nmUV, BK-7, Zer
PM-1525-XX38.106.3510–5λ/10 @ 633nmUV, BK-7, Zer
PM-1537-XX38.109.5310–5λ/10 @ 633nmUV, BK-7, Zer
PM-2025-XX50.806.3510–5λ/10 @ 633nmUV, BK-7, Zer
PM-2037-XX50.809.5310–5λ/10 @ 633nmUV, BK-7, Zer
PM-3050-XX76.2012.7010–5λ/10 @ 633nmUV, BK-7, Zer
PM-4050-XX101.6012.7010–5λ/10 @ 633nmUV, BK-7, Zer


4、Misc Optics

Lenses

General Lens Substrate Specifications

Materials: BK-7, UVFS
Design λ for BK-7 Lenses – 633nm
Design λ for UV Grade FS Lenses – 260nm
Surface Figure: λ10 @ 632.8nm over clear aperture
Surface Quality: 20-10
Centration: 3 arc minutes
Clear Aperture: 85% of central dimension
Diameter/Length/Width: +0.000 / -0.250mm
Chamfer: 0.350mm X 45° typical

Prisms

Right Angle Prisms
Product Code: RAP

Dimensional Tolerance: +0.000 /-0.010‖ [+0.00/-0.25mm]
Angular Tolerance: < 3 arc minutes Clear Aperture: >80% of central dimension
Chamfer: 0.38mm @ 45° typical

  • Standard Right Angle Prisms are uncoated

  • If you are unable to find the prism you desire, please call OptiSource Technical Sales regarding a quotation for your
    prototype or OEM requirement.

Right Angle Prisms (RAP) Configurations
Product NumberLength (mm)Width (mm)Surface QualityFlatnessMaterial
RAP-04-XX10.010.010–5
UV, BK-7
RAP-05-XX12.712.710–5
UV, BK-7
RAP-06-XX15.015.010–5
UV, BK-7
RAP-08-XX20.020.010–5
UV, BK-7
RAP-10-XX25.425.410–5
UV, BK-7
RAP-15-XX38.138.110–5
UV, BK-7
RAP-20-XX50.850.810–5
UV, BK-7

Bending Prisms
Product Code: BP

Dimensional Tolerance: +0.000 /-0.010‖ [+0.00/-0.25mm]
Angular Tolerance: < 3 arc minutes Clear Aperture: >80% of central dimension
Chamfer: 0.38mm @ 45° typical

  • Standard Bending Prisms are AR coated on both legs at the customer specified wavelength

  • If you are unable to find the prism you desire, please call OptiSource Technical Sales regarding a quotation for your
    prototype or OEM requirement.

Bending Prisms (BP) Configurations
Product NumberLength (mm)Width (mm)Surface QualityFlatnessMaterial
BP-04-XX10.0010.0010–5
UV, BK-7
BP-05-XX12.7012.7010–5
UV, BK-7
BP-06-XX15.0015.0010–5
UV, BK-7
BP-08-XX20.0020.0010–5
UV, BK-7
BP-10-XX25.4025.4010–5
UV, BK-7
BP-15-XX38.1038.1010–5
UV, BK-7
BP-20-XX50.8050.8010–5
UV, BK-7

Folding Prisms
Product Code: FP

Dimensional Tolerance: +0.000 /-0.010‖ [+0.00/-0.25mm]
Angular Tolerance: < 3 arc minutes Clear Aperture: >80% of central dimension
Chamfer: 0.38mm @ 45° typical

  • Standard Folding Prisms are AR coated on the hypotenuse at the customer specified wavelength

  • If you are unable to find the prism you desire, please call OptiSource Technical Sales regarding a quotation for your
    prototype or OEM requirement.

Folding Prisms (FP) Configurations
Product NumberLength (mm)Width (mm)Surface QualityFlatnessMaterial
FP-04-XX10.0010.0010–5
UV, BK-7
FP-05-XX12.7012.7010–5
UV, BK-7
FP-06-XX15.0015.0010–5
UV, BK-7
FP-08-XX20.0020.0010–5
UV, BK-7
FP-10-XX25.4025.4010–5
UV, BK-7
FP-15-XX38.1038.1010–5
UV, BK-7
FP-20-XX50.8050.8010–5
UV, BK-7

Brewster’s Dispersing Prisms
Product Code: BDP

Dimensional Tolerance: +0.000 /-0.010‖ [+0.00/-0.25mm]
Angular Tolerance: < 3 arc minutes Clear Aperture: >80% of central dimension
Chamfer: 0.38mm @ 45° typical

  • Standard Folding Prisms are AR coated on the hypotenuse at the customer specified wavelength

  • If you are unable to find the prism you desire, please call OptiSource Technical Sales regarding a quotation for your
    prototype or OEM requirement.

Brewster's Dispersing Prisms (BDP) Configurations
Product NumberA (mm)B (mm)Brewster's AngleMaterial
BDP-05-UV12.712.769.06°UV Fused Silica
BDP-06-UV15.015.069.06°UV Fused Silica
BDP-06-SF1015.015.060.60°SF-10
BDP-10-SF1025.025.060.60°SF-10

Equilateral Dispersing Prisms
Product Code: EDP

Equilateral Dispersing Prisms (EDP) Configurations
Product NumberA=B=C (mm)Apex AngleMaterial
EDP-06-BK15.060°BK-7
EDP-08-BK20.060°BK-7
EDP-10-BK25.060°BK-7
EDP-12-BK30.060°BK-7
EDP-16-BK40.060°BK-7
EDP-24-BK60.060°BK-7
EDP-12-F230.060°F2
EDP-24-F260.060°F2
EDP-12-SF1030.060°SF-10
EDP-24-SF1060.060°SF-10
分享到 :
