Spectrogon(瑞典)

http://www.spectrogon.com

地址:
Box 7071 187 12 Täby Sweden
电话:
+46 8 6 38 28 00
传真:
+46 8 6 38 28 08
产品:
增透膜  分束器  介质膜  介质膜反射镜  衍射光栅  激光反射镜  镜片  中性密度滤光片  光学滤波器  光学窗口

公司简介

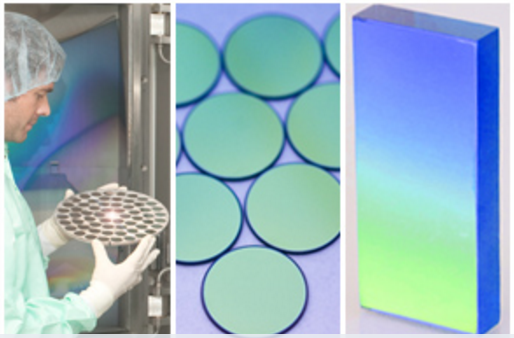

Spectrogon公司提供基于光的干涉或衍射光线控制的最先进光学部件和子系统,主要应用于测量,产品很有有竞争力。其产品市场包括:医疗诊断仪器、工业过程控制、机器人、环境测量、光通信和其他各种相关分析仪器。


技术能力



产品列表

OPTICAL FILTERS

Service stock filters, Wavelength range UV, VIS, NIR & IR

·         Bandpass Filters, HW > 3 % of CWL

·         Narrow Bandpass Filters, HW < 3 % of CWL

·         Longwave-Pass Filters

·         Shortwave-Pass Filters

·         Broad-Bandpass Filters

·         Neutral Density Filters

HOLOGRAPHIC GRATINGS

l   Plane gratings


l   Laser tuning gratings

Art no

Description

Optimised
  for (nm)

Optimised
  for AOI (Deg)

Min efficiency
  % (TM/-1)

Qty in stock

715.706.570

G 0600 14x76x16 VIS (Z)

633

82

29

8

715.702.360

G 0800 10x15x10 NIR

1550

57

92

>10

715.702.280

G 0900 10x15x10 NIR

1550

60

92

>10

715.000036

G 0900 10x15x10 1400 nm

1400

85

60

>10

715.702.270

G 0900 13x29x10 NIR

1550

75

85

8

715.702.300

G 0900 15x15x10 1550 nm

1550

70

90

1

715.702.290

G 0900 15x15x10 NIR

1550

75

85

10

715.702.340

G 0900 15x20x10 NIR

1550

75

85

>10

715.705.020

G 0900 30x30x6 NIR

1065

75

43

7

715.702.390

G 0930 10x15x10 NIR

1550

75

85

0

715.702.380

G 0955 10x15x10 NIR

1500

75

85

>10

715.702.230

G 0990 10x15x10 NIR

1400

60

90

11

715.702.930

G 1050 10x15x10 NIR

1310

75

85

0

715.704.820

G 1200 15x60x10 NIR

1240

85

60

3

715.705.700

G 1200 20x20x6 NIR

980

75

90

1

715.703.290

G 1200 20x90x16 NIR

1050

80

78

2

715.704.040

G 1350 15x60x10 NIR

1240

85

60

3

715.706.230

L 1600 10x15x6 NIR

900

Dev 0-10°

90

>10

715.705.060

G 1600 10x25x10 NIR

780

75

85

2

715.705.720

G 1630 10x25x10 NIR

830

66

90

6

715.702.780

G 1700 10x25x10 NIR

780

85

50

5

715.000038

G 1800 10x20x6 NIR

633

85

62

>10

715.705.500

G 1800 10x25x6 NIR

975

75

85

8

715.704.950

G 1800 20x70x15 VIS

650

80

70

1

715.703.900

G 1800 20x90x16 VIS-NIR

800

74

80

2

715.703.650

G 1800 20x90x16 VIS-NIR

800

85

45

1

715.700.790

G 2400 10x25x10 VIS-NIR

633

75

75

>10

715.705.100

G 2400 10x30x6 VIS

550

80

68

3

715.705.430

G 2400 12.5x62.5x10 VIS-NIR

575

80

65

6

715.702.880

G 2400 15x60x10 VIS-NIR

590

81

50

3

715.704.960

G 2400 20x70x15 VIS

500

80

70

4

715.703.660

G 2400 20x90x16 VIS

514

85

46

1

715.704.970

G 3000 20x70x15 VIS

500

86

37

2

715.702.760

G 3000 20x90x16 VIS

470

85

42

1

715.704.980

G 3600 20x70x15 VIS

400

80

60

1


l   Pulse compression gratings

Art   no

Description,   (Z) Zerodur

Optimised   for
  (nm) see curve

Deviation
  (Deg) see curve

Min   Efficiency
  % (TM/-1)

715.704.400

PC   0300 50x50x10 NIR

800

8

25


715.704.550

PC   0600 30x30x6 NIR

800

8

29

715.703.080

PC   0600 30x30x6 1550 nm

1550

8

90

715.701.890

PC   0600 50x50x10 NIR

1600

16

90

715.703.560

PC   0600 50x50x10 1550 nm

1550

8

90

715.701.910

PC   0600 50x110x16 NIR

1600

16

90

715.706.430

PC   0600 110x110x16 NIR

2450

10

90

715.706.880

PC   0600 120x140x20 NIR

2450

10

90


715.703.070

PC   0900 30x30x6 NIR

800

10

50

715.703.060

PC   0900 30x30x6 NIR

1032

8

90

715.704.600

PC   0900 30x30x6 NIR

1060

8

90

715.703.450

PC   0900 30x30x6 1350 nm

1350

8

90

715.703.130

PC   0900 30x30x6 1550 nm

1550

8

90

715.703.210

PC   0900 30x64x10 1550 nm

1550

8

90

715.703.440

PC   0900 30x110x16 1350 nm

1350

8

90

715.703.090

PC   0900 30x110x16 1550 nm

1550

8

90

715.706.550

PC   0900 30x110x16 1950 nm

1950

10

90

715.704.340

PC   0900 50x50x10 NIR

1047

8

90

715.703.550

PC   0900 50x50x10 1550 nm

1550

8

90

715.707.030

PC   0900 50x50x10 1950 nm (Z)

1950

10

90

715.707.020

PC   0900 50x110x16 NIR

800

10

50

715.707.040

PC   0900 50x110x16 1950 nm (Z)

1950

10

90

715.706.440

PC   0900 120x140x20 1550 nm

1550

8

90


715.704.140

PC   1100 25x25x6 NIR

1550

8

90

715.706.390

PC   1100 30x75x16 NIR

800

8

88

715.706.390

PC   1100 30x75x16 NIR (Z)

800

8

88

715.702.240

PC   1100 30x110x16 NIR

800

8

88

715.706.580

PC   1100 30x110x16 NIR (Z)

800

8

88

715.706.900

PC   1100 30x110x16 NIR

1550

8

90

715.705.180

PC   1100 50x50x10 NIR

800

8

88

715.703.200

PC   1100 50x50x10 NIR

1550

8

90

715.703.500

PC   1100 110x110x16 NIR

800

8

88


715.704.160

PC   1200 25x25x6 NIR

800

8

90

715.702.200

PC   1200 25x25x6 NIR

1047

8

90

715.701.120

PC   1200 30x30x6 NIR

800

8

90

715.703.770

PC   1200 30x30x6 NIR

1047

8

90

715.702.940

PC   1200 30x30x6 1550 nm

1550

8

90

715.701.200

PC   1200 30x64x10 NIR

800

8

90

715.703.410

PC   1200 30x64x10 1035 nm

1035

8

90

715.705.810

PC   1200 30x64x10 1550 nm

1550

8

90

715.700.550

PC   1200 30x110x16 NIR

800

8

90

715.702.950

PC   1200 30x110x16 NIR (Z)

800

8

90

715.702.740

PC   1200 30x110x16 NIR

1550

8

90

715.700.640

PC   1200 50x50x10 NIR

800

8

90

715.705.050

PC   1200 50x50x10 NIR (Z)

800

8

90

715.704.690

PC   1200 50x50x10 NIR

1053

8

90

715.704.250

PC   1200 50x50x10 NIR

1250

8

90

715.702.150

PC   1200 58x58x10 NIR

800

8

90

715.703.930

PC   1200 58x58x10 NIR (Z)

800

8

90

715.703.700

PC   1200 58x58x10 NIR

1550

8

90

715.703.880

PC   1200 58x58x10 NIR (Z)

1550

8

90

715.700.620

PC   1200 64x64x10 NIR

800

8

90

715.700.630

PC   1200 50x110x16 NIR

800

8

90

715.701.320

PC   1200 50x110x16 NIR

800

14

90

715.702.910

PC   1200 50x110x16 NIR (Z)

800

8

90

715.705.600

PC   1200 50x110x16 NIR

1047

8

90

715.705.030

PC   1200 50x140x20 NIR

800

8

90

715.700.460

PC   1200 90x90x16 NIR

800

8

90

715.703.280

PC   1200 100x140x20 NIR

800

8

90

715.700.580

PC   1200 110x110x16 NIR

800

8

90

715.703.960

PC   1200 110x110x16 NIR (Z)

800

8

90

715.701.220

PC   1200 120x140x20 NIR

800

8

90

715.704.670

PC   1200 120x140x20 NIR (Z)

800

8

90

715.705.400

PC   1200 120x140x20 NIR

1053

8

90


715.704.680

PC   1250 30x64x10 1040 nm

1040

8

90


715.703.190

PC   1400 25x25x6 NIR

800

8

90

715.702.620

PC   1400 30x30x6 NIR

800

12

90

715.700.720

PC   1400 30x110x16 NIR

800

15

90

715.701.760

PC   1400 30x110x16 NIR

800

8

90

715.707.010

PC   1400 40x140x20 NIR (Z)

800

15

90

715.702.840

PC   1400 50x50x10 NIR

800

8

90

715.703.990

PC   1400 50x50x10 NIR (Z)

800

8

90

715.704.510

PC   1400 50x110x16 NIR

800

8

90

715.704.010

PC   1400 50x110x16 NIR (Z)

800

8

90

715.704.610

PC   1400 60x120x20 NIR

800

21

90

715.703.260

PC   1400 64x64x10 NIR

800

8

90

715.703.620

PC   1400 90x90x16 NIR

800

8

90

715.703.240

PC   1400 110x110x16 NIR

800

15

90

715.704.990

PC   1400 110x110x16 NIR (Z)

800

10

90

715.704.080

PC   1400 100x140x20 NIR

800

17

90

715.704.190

PC   1400 120x140x20 NIR

800

12

90

715.704.660

PC   1400 120x140x20 NIR (Z)

800

8

90


715.705.730

PC   1480 25x25x6 NIR

1053

10

90

715.704.030

PC   1480 50x50x10 NIR

765

20

89

715.705.780

PC   1480 50x110x16 NIR

1053

10

90

715.706.150

PC   1480 58x58x10 NIR

800

10

90

715.703.750

PC   1480 60x140x20 NIR

1060

8

90

715.705.740

PC   1480 110x110x16 NIR

800

10

90

715.705.750

PC   1480 120x140x20 NIR

800

10

90

715.706.110

PC   1480 120x140x20 NIR (Z)

800

10

90

715.706.780

PC   1480 140x120x20 NIR (Z)

800

10

90

715.705.990

PC   1480 140x120x20 NIR

800

18

90






715.703.640

PC   1500 25x25x6 NIR

800

8

90

715.702.590

PC   1500 30x30x6 NIR

800

55

90

715.704.050

PC   1500 30x30x6 NIR

1030

8

90

715.703.860

PC   1500 30x64x10 NIR

800

8

90

715.705.070

PC   1500 30x75x16 1030 nm

1030

8



l   Concave gratings, Rowland type

Size   [mm]

Thk   [mm]

RoC   [mm]

Material

40   x 45

7

-225

Pyrex

50   x 50

7

-225

Pyrex

Ø50.8

6

-100

BK7

Ø63.5

12.5

-400

Pyrex

Ø63.5

12.5

-750

Fused   Silica

Ø63.5

12.5

-999

Quartz
