公司简介
Chromacity Lasers公司由英国在光子学技术领域处于领先地位的Heriot-Watt大学分拆而出，其科研团队有着超过40年的超快和光纤激光器经验，已开发出从UV（400nm）到MIR（>6um）的波长可调谐飞秒激光器，广泛应用于荧光显微、气体光谱学、激光材料加工和半导体工程等科研和工业领域。
产品列表
Ultrafast Fiber Lasers

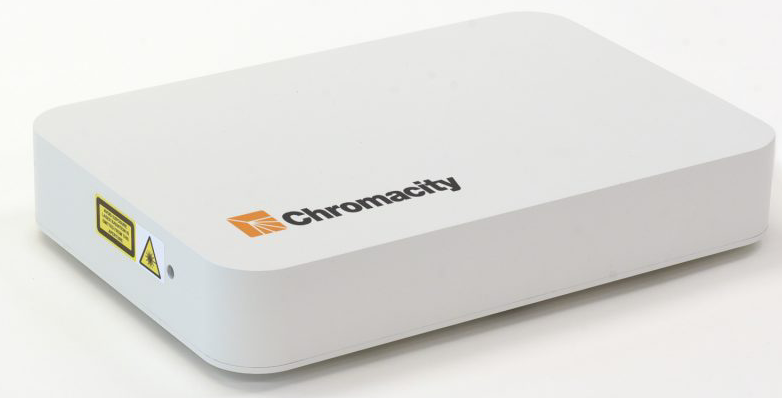

Chromacity 1040
The Chromacity 1040 laser system is available in two versions, delivering either 500 mW or up to 2.5 W, with picosecond or femtosecond pulsewidths. Operating at a wavelength of 1040 nm, this is the ideal source for a wide range of multi-photon microscopy, SHG imaging and seed laser applications.
Specifications
| Output wavelength | 1040 nm |
| Pulse duration | 100 fs - 1.5 ps (factory set) |
| Output power | 500 mW or > 2.5 W versions |
| Pulse Energy | Up to 25 nJ |
| Beam Quality | M2 < 1.2, divergence < 2 mrad |
| Repetition frequency | 100 MHz (140 Hz RMS, 50 hours) |
| Control interface | Ethernet, and web page Serial port (for control via LabView/MatLab) |
| Cooling | Air cooled (no water cooling required) |
Chromacity 520
The Chromacity 520 ultrafast laser system provides more than 500 mW in the visible region. Operating at a wavelength of 520 nm it is an ideal source for a wide range of non-linear optics, microscopy and spectroscopy applications.
Specifications
| Output wavelength | 520 nm |
| Pulsewidth | < 250 fs |
| Output power | > 500 mW |
| Pulse Energy | Up to 5 nJ |
| Beam Quality | M2 < 1.2, divergence < 2 mrad |
| Repetition frequency | 100 MHz |
| Control interface | Ethernet, and web page Serial port (for control via LabView/MatLab) |
| Cooling | Air cooled (no water cooling required) |
Infrared OPOs
Chromacity OPO
The Chromacity OPO provides exceptional tunability and power across the near-infrared, making it an ideal light source for a wide range of application areas (from multi-photon microscopy to spectroscopy). Our ultrafast optical parametric oscillator technology can generate light from 1.4 µm to 4.2 µm with picosecond pulsewidths (femtosecond operation from 1.4-1.7 µm is available). With a fully integrated pump source it is able to deliver high average power at both the signal and idler wavelengths with exceptional reliability. We also provide access to the fixed wavelength pump light, making it suitable for CARS microscopy.
Specifications
| Signal Wavelength | 1.4 - 1.8 µm |
| Signal power | Up to 800 mW at 1.5 µm |
| Idler Wavelength | 2.2 - 4.2 µm |
| Idler power | Up to 250 mW at 3.3 µm |
| Pulsewidth | 1 - 2 ps |
| Repetition frequency | 100 MHz |
| Control interface | Ethernet, and web page Serial port (for control via LabView/MatLab) |
| Cooling | Air Cooled |
| Femtosecond operation | Possible from 1.4-1.7 µm (please contact for details) |
Mid-Infrared OPOs
Chromacity FIR
The Chromacity FIR is the world’s first commercial broadband ultrafast OPO providing output in the 5 – 12 µm region. In the 5 – 7 µm region up to 80 mW can be achieved and at 12 µm up to 10 mW of light is available. The Chromacity FIR is an ideal source for spectroscopy in the molecular fingerprint region as well as stand-off detection and remote sensing applications.
Specifications
| Output wavelength | 5 µm – 12 µm (discrete broadband spectra provided by individual crystals) |
| Output power | Up to 80 mW (@ 5-7 µm) and up to 10 mW (@ 12 µm) |
| Pump source | Fully integrated Spark 1040 |
| Repetition frequency | 100 MHz |
| Control interface | Ethernet, and web page Serial port (for control via LabView/MatLab) |
| Cooling | Air Cooled |
