公司简介：
德国科迪CODIXX公司是偏振片的主要制造商，CODIXX产品主要应用在光学测量技术：电光调制器、实验室应用、投影仪、激光投影仪光学通讯：光纤传输：偏振模色散（PMD）、偏振相关损耗（PDL）、偏振复用传输光学隔离器、在集成光学电路中抑制非预期的偏振方向、用于PMD的偏振控制、测量与仪表技术等领域。
产品列表：
colorPol® UV polarizer
The polarizer used in ultraviolet spectral range
→ Resistant to UV radiation
| Wavelength range | 340 – 420 nm |
| Thickness | 0.22 resp. 0.27 (+/- 0.05) mm (non-laminated) 2.0 (+/- 0.2) mm (laminated) |
| Temperature range | - 50 to + 400 °C (non-laminated) - 20 to + 120 °C (laminated ) |
| Option | Anti-reflection coating to increase transmission and to reduce reflection |
| Dimensions | According to specific customer requirements |
More spectral ranges, transmission characteristics and contrast ratios are available.
Important features of colorPol® polarizers
|
|
CODIXX provides following standard products for UV polarizer:
| colorPol® products | Wavelength- range [nm] | Transmittance [%] | Contrast | Thickness [µm] unlaminated | Thickness [mm] laminated | Dimension [mm2] | |
|---|---|---|---|---|---|---|---|
| UV 375 BC5 | 362-392 360-397 357-403 | >40-47 >40-48 >39-48 | >100,000:1 >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_UV_375_BC5_general.pdf |
| UV 380 BC4 | 372-388 369-390 365-395 | >52-57 >52-58 >51-59 | >100,000:1 >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_UV_380_BC4_general.pdf |
| Laserline Nd:YAG BC4 | at 355 nm | >37 | >10,000:1 | 270+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_Laserline_NdYAG_BC4_general.pdf |
Contrast ratios ≥ 100,000:1, other thicknesses, shapes or dimensions on request. Reflection losses can be minimized by antireflection coating. AR-coatings are available for different wavelength ranges as V-coating or wide-band version. | |||||||
colorPol® UV 375 BC5 |
colorPol® UV 380 BC4 |

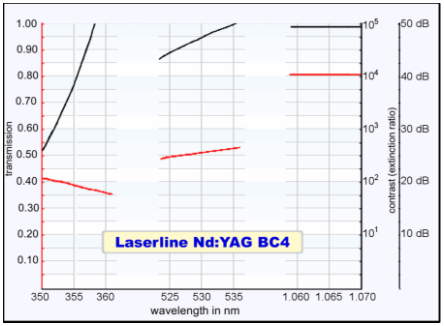

colorPol® Laserline Nd:YAG BC4 |
colorPol® VIS polarizer
The polarizer used in visible spectral range
| Wavelength range | 440 - 750 nm |
| Thickness | 0.28 resp. 0.27 (+/- 0.05) mm (non-laminated) 2.0 (+/- 0.2) mm (laminated) |
| Temperature range | - 50 to + 400 °C (non-laminated) - 20 to + 120 °C (laminated) |
| Option | Anti-reflection coating to increase transmission and to reduce reflection |
| Dimensions | According to specific customer requirements |
More spectral ranges, transmission characteristics and contrast ratios are available.
Important features of colorPol® polarizers
|  |
colorPol® standard products:
| colorPol® products | Wavelength-range [nm] | Transmittance [%] | Contrast | Thickness [µm] unlaminated | Thickness [mm] laminated | Dimension [mm2] | |
|---|---|---|---|---|---|---|---|
| VIS 500 BC3 | 475-625 | >55-81 | >1,000:1 | 280+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_VIS_500_BC3_general.pdf |
VIS 500 BC3 CW01 (AR coated) | 475-625 | >58-90 | >1,000:1 | 280+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_VIS_500_BC3_CW01_general.pdf |
| VIS 500 BC4 | 480-550 | >58-76 | >10,000:1 | 280+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_VIS_500_BC4_general.pdf |
VIS 500 BC4 CW01 (AR coated) | 480-550 | >62-82 | >10,000:1 | 280+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_VIS_500_BC4_CW01_general.pdf |
| VIS 600 BC5 | 530-640 520-740 510-800 | >62-78 >60-81 >55-83 | >100,000:1 >10,000:1 >1,000:1 | 280+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_VIS_600_BC5_general.pdf |
| Laserline Nd:YAG BC4 | at 532 nm | >50 | >10,000:1 | 270+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_Laserline_NdYAG_BC4_general.pdf |
| Contrast ratios ≥ 100,000:1, other thicknesses, shapes or dimensions on request. Reflection losses can be minimized by antireflection coating. AR-coatings are available for different wavelength ranges as V-coating or wide-band version. | |||||||
colorPol® VIS 500 BC3 |

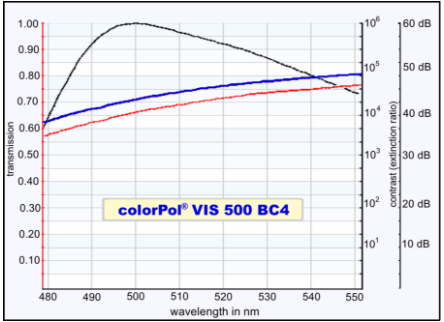

colorPol® VIS 500 BC4 |

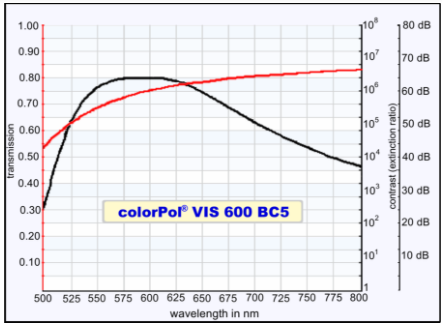

colorPol® VIS 600 BC5 |
colorPol® Laserline Nd:YAG BC4 |
colorPol® VIS-IR polarizer
The polarizer used in visible infrared
→ High contrast, high transmission, broad spectral bandwidth
| Wavelength range | 550 – 2000 nm |
| Thickness | 0.22 resp. 0.26 (+/- 0.05) mm (non-laminated) 2.0 (+/- 0.2) mm (laminated) |
| Temperature range | - 50 to + 400 °C (non-laminated) - 20 to + 120 °C (laminated) |
| Option | Anti-reflection coating to increase transmission and to reduce reflection |
| Dimensions | According to specific customer requirements |
More spectral ranges, transmission characteristics and contrast ratios are available.
Important features of colorPol® polarizers
|  |
colorPol® standard products:
| colorPol® products | Wavelength- range [nm] | Transmittance [%] | Contrast | Thickness [µm] unlaminated | Thickness [mm] laminated | Dimension [mm2] | |
|---|---|---|---|---|---|---|---|
| VIS 700 BC3 | 550-900 | >77-86 | >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_VIS_700_BC3_general.pdf |
VIS 700 BC CW03 (AR coated) | 550-900 | >84-93 | >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_VIS_700_BC3_CW03_general.pdf |
| VIS 700 BC4 | 600-850 600-1,000 | >78-87 >78-88 | >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_VIS_700_BC4_general.pdf |
VIS 700 BC4 CW02 (AR coated) | 600-850 600-1,000 | >84-93 >84-95 | >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_VIS_700_BC4_CW02_general.pdf |
| VISIR | 600-1,200 550-1,500 | >67-84 >57-85 | >100,000:1 >10,000:1 | 260+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_VISIR_general.pdf |
VISIR CW02 (AR coated) | 600-1,200 | >71-88 | >100,000:1 | 260+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_VISIR_CW02_general.pdf |
| IR 950 BC4 | 800-1,100 600-1,320 | >85-87 >80-88 | >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_IR_950_BC4_general.pdf |
IR 950 BC4 CW02 (AR coated) | 800-1,100 600-1,150 | >90-94 >82-94 | >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_IR_950_BC4_CW02_general.pdf |
| IR 1100 BC4 | 900-1,200 750-1,400 650-1,700 | >85-87 >83-87 >80-88 | >100,000:1 >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_IR_1100_BC4_general.pdf |
IR 1100 BC4 CW02 (AR coated) | 900-1,200 750-1,250 650-1,250 | >91-94 >89-94 >86-94 | >100,000:1 >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | |
| IR 1300 BC5 | 850-1,600 750-1,800 650-2,000 | >82-86 >80-87 >76-87 | >100,000:1 >10,000:1 >1,000:1 | 220+/-50 | 2.0+/-0.2 | <=100x50 | colorPol_IR_1300_BC5_general.pdf |
| Contrast ratios ≥ 100,000:1, other thicknesses, shapes or dimensions on request. Reflection losses can be minimized by antireflection coating. AR-coatings are available for different wavelength ranges as V-coating or wide-band version. | |||||||
colorPol® VIS 700 BC3 |
colorPol® VIS 700 BC4 |
colorPol® VISIR |
colorPol® IR 950 BC4 |
colorPol® IR 1100 BC4 |
colorPol® IR 1300 BC5 |
colorPol® IR polarizer
The polarizer used in near to mid infrared
→ High contrast, high transmission, broad spectral bandwidth
| Wavelength range | 1000 - 5000 nm |
| Thickness | 0.20 (+/- 0.05) mm to 0.27 (+/- 0.05) mm (non-laminated) 2.0 (+/- 0.2) mm (laminated) |
| Temperature range | - 50 to + 400 °C (non-laminated) - 20 to + 120 °C (laminated) |
| Option | Anti-reflection coating to increase transmission and to reduce reflection |
| Dimensions | According to specific customer requirements |
More spectral ranges, transmission characteristics and contrast ratios are available.
Important features of colorPol® polarizers
|  |
colorPol® standard products for IR polarizer:
| colorPol® products | Wavelengthrange [nm] | Transmittance [%] | Contrast | Thickness [µm] unlaminated | Thickness [mm] laminated | Dimension [mm2] | |
|---|---|---|---|---|---|---|---|
| NIR | 1,000-2,700 2,700-3,000 | >77 >70 | 250+/-65 | 2.0+/-0.2 at other wavelength ranges | <=100x60 | colorPol_NIR_general.pdf | |
1,200-3,000 1,000-3,000 | >10,000:1 >1,000:1 | ||||||
| MIR | 2,000-4,500 1,500-5,000 | >65-90 >35-90 | >10,000:1 >1,000:1 | 200+/-50 | - | <=100x50 | colorPol_MIR_general.pdf |
| Laserline Nd:YAG BC4 | at 1,064 nm | >79 | >10,000:1 | 270+/-50 | 2.0+/-0.2 | <=100x60 | colorPol_Laserline_NdYAG_BC4 _general.pdf |
| Contrast ratios ≥ 100,000:1, other thicknesses, shapes or dimensions on request. Reflection losses can be minimized by antireflection coating. AR-coatings are available for different wavelength ranges as V-coating or wide-band version. | |||||||
colorPol® NIR |
colorPol® MIR |
colorPol® Laserline Nd:YAG BC4 |
colorPol® S - the patterned polarizer
The polarizer for specific applications and special requirements
Lateral design of regions with various characteristics of polarization, for example regions with
Diverse wavelength ranges
Different polarization axes
Transmissible or blocked regions
| Shape and size | Circles, rectangles, triangles as well as free-form shapes in several sizes |
| Option | Anti-reflection coating to increase transmission and to reduce reflection |
Design according to specific customer requirements.
Technical data of different technologies
| Mosaic technology | Lithography | |
| Wavelength range | 340 – 2650 nm | 340 – 2650 nm |
| Contrast ratio | As standard products | Small structures of up to 10,000:1 otherwise standard products |
| Resolution of each segment | Depends on segment shape and on number of segments
(> 2 resp. 10 mm) | Down to 30 µm |
| Quantity of different segments | limited | limited |
| Orientation of the polarization axes | < 0.5 – 2 ° | < 0.5 ° |
 |  |
