AdlOptica GmbH

AdlOptica GmbH（德国）

http://www.adloptica.com

地址：: Rudower Chaussee 29 12489 Berlin, Germany

电话：: +49 30 5659 0888-0

传真：: +49 30 5659 0888-1

产品：: 光束整形器

公司简介

ADLOPTICA公司位于德国柏林，专注于研究生产激光光束整形器（也称光束匀化器）可以将高斯能量分布的激光光束，整形匀化为平顶分布，常应用于激光科研和加工领域。其产品主要包括piShaper和Focal-piShaper，piShaper用于要求平顶的准直光束的应用，Focal-piShaper则应用于聚焦后焦斑和焦面为平顶的工业应用。另外，公司创始人Alex近年来又专门针对工业客户开发有方光斑处理系统。

产品列表

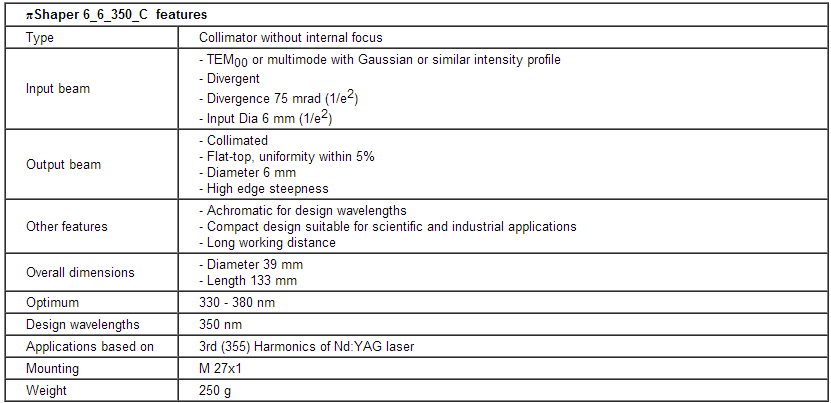

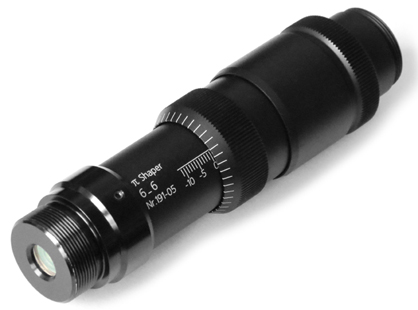

πShaper 6_6 Series High efficient laser beam shaping systems

Proved achromatic design of πShaper6_6 systems makes them a versatile solution for applications based on lasers of NIR (near infrared), Visual and UV-spectrum.
Applications:

Welding of metals and plastics
Flow Cytometry
Holography
Marking and Engraving
Material micromachining
Particle Image Velocimetry
Particle Size Analyzing
Laser ablation
Laser annealing

piShaper 6_6 Series High efficient laser beam shaping systems

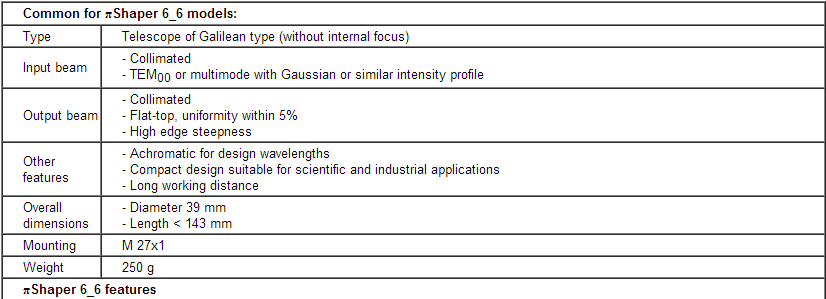

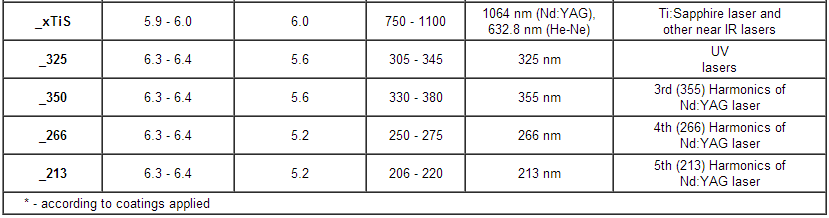

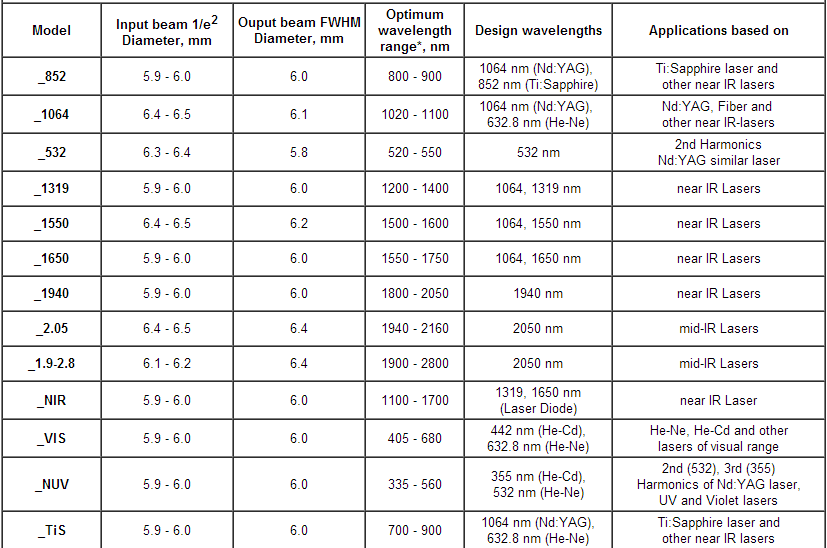

Technical Specifications:

- πShaper_6_6_leaflet

Focal-piShaper

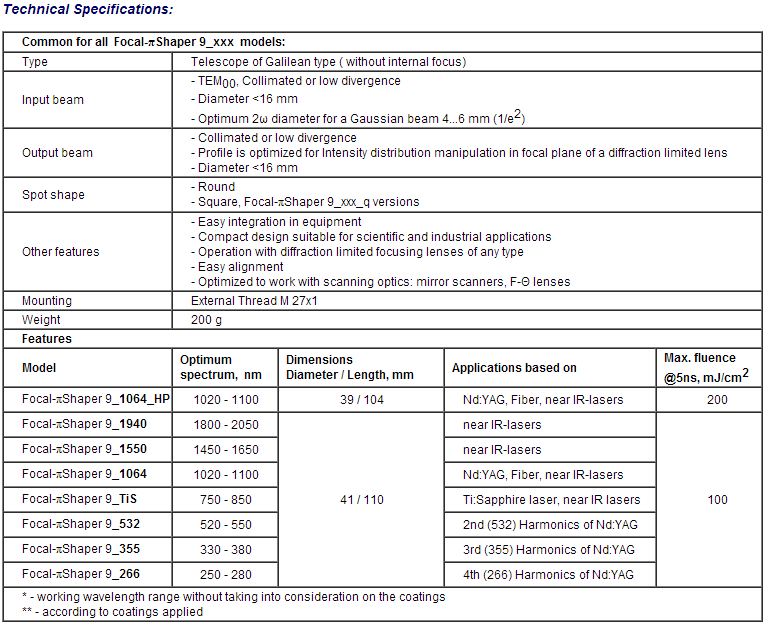

Focal-πShaper 9_xxx

- Focal-πShaper_9_xxx_leaflet

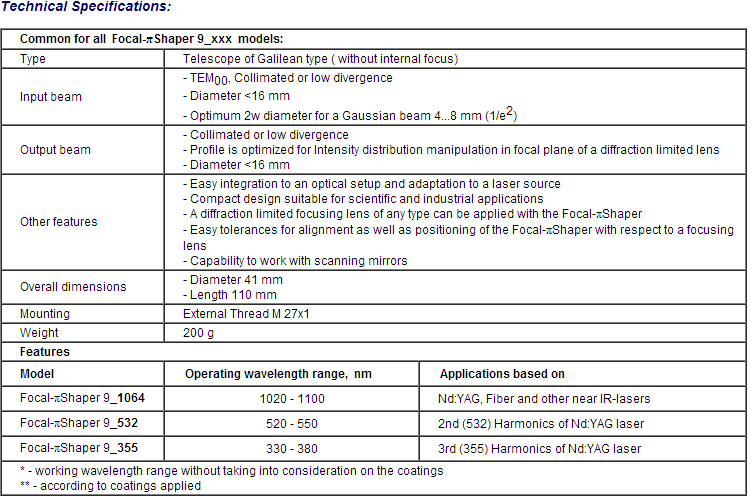

Focal-πShaper 9_xxx

- Focal-πShaper_9_xxx_leaflet

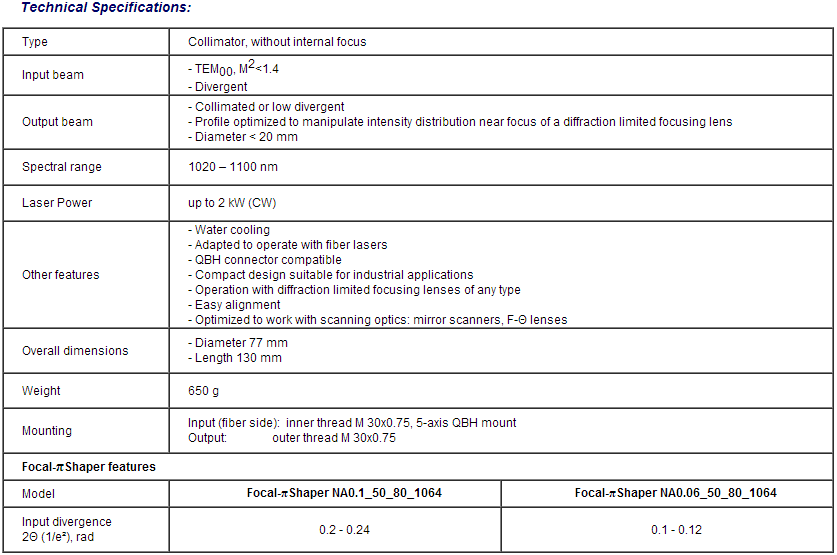

SQUARE Focal-πShaper NA 0.1_50_80_1064

- Focal-πShaper NA 0.1_50_80_1064_leaflet

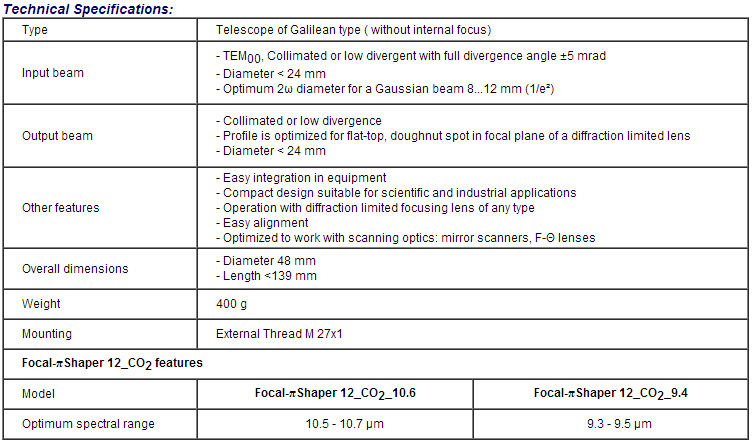

Focal-πShaper 12_CO2

- Focal-πShaper 12_CO₂_leaflet

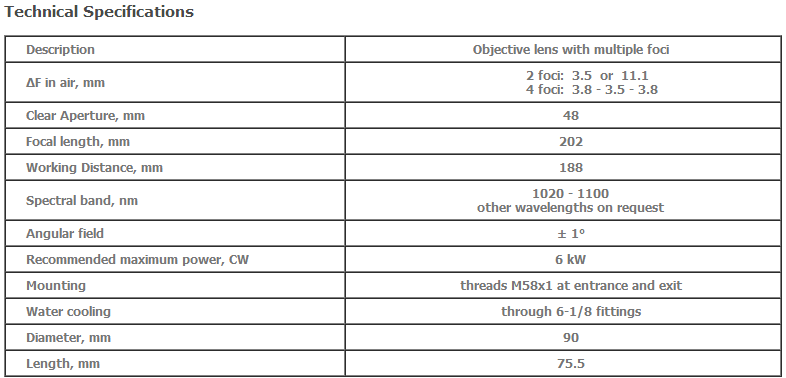

foXXus 3.5-11.1_F200

- Leaflet foXXus 3.5-11.1_F200

duofocus

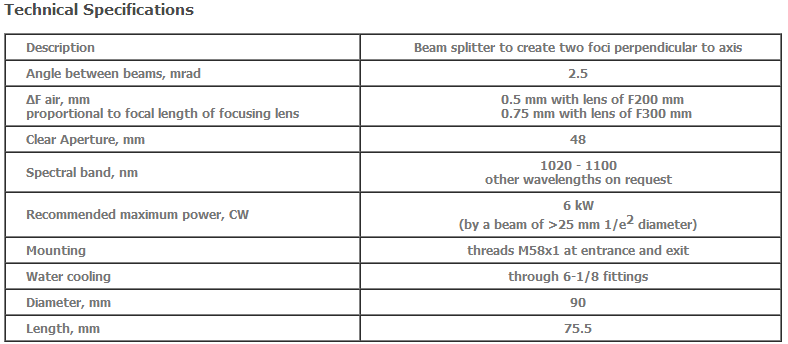

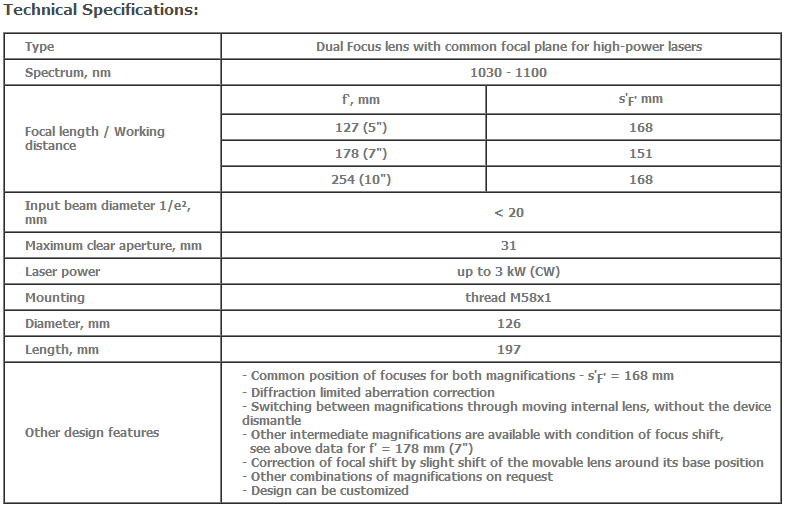

duoFokus 127/254_25_1070

- Leaflet duoFokus Lens F127_254 mm D25 1070 nm

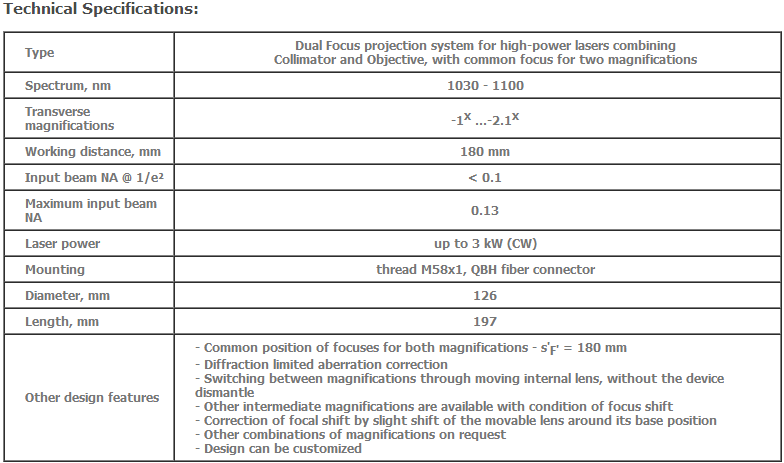

duoFokus 1x_2x_NA0.13_1070

- Projection duoFokus 1x_2x_NA0.13_1070 nm leaflet

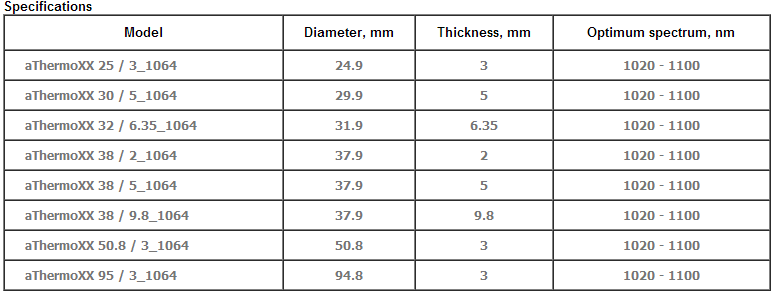

- aThermoXX leaflet

- Leaflet twoXX_2.5_1064
