公司简介

Boston Applied Technologies Incorporated (BATi) 成立于2002年,由康宁公司的子公司康宁应用技术公司(CAT)的关键管理和技术团队组成。BATI的使命是为新兴的光子/电子市场开发和制造基于新材料的设备。凭借多年的发展努力和一批行业先锋,BATi在为电信和仪器市场设计、制造和销售各种光和偏振管理组件方面建立了独特的领先地位。


产品列表

Photonic Devices

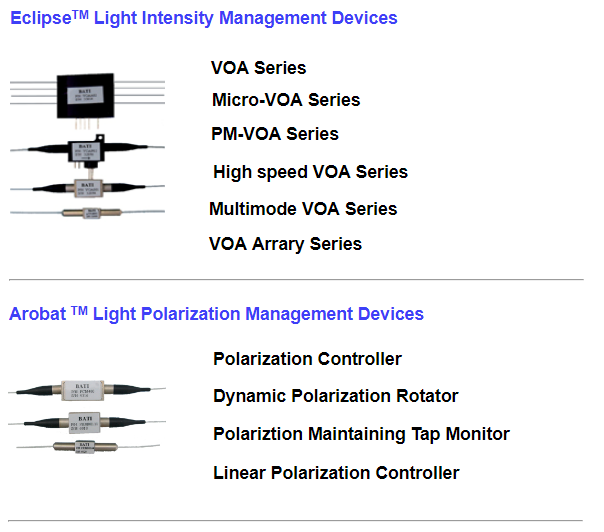

                •EclipseTM Light Intensity Management Devices

                •Arobat TM Light Polarization Management Devices

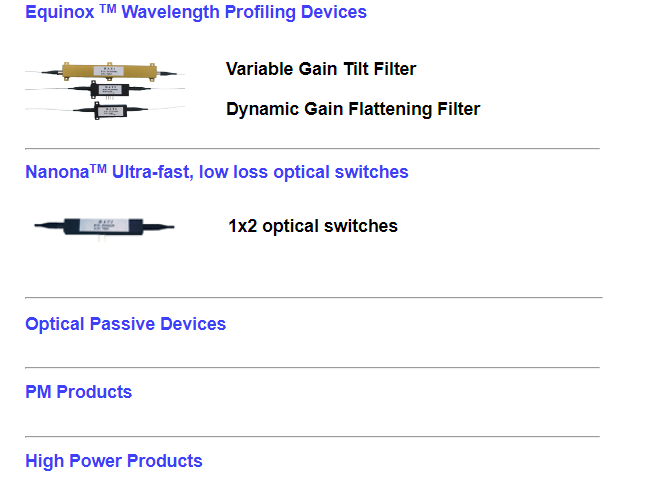

EquinoxTM Wavelength Profiling Devices

NanonaTM Optical switches

Optical Passive Devices

PM Products

High Power Products


Advanced Materials

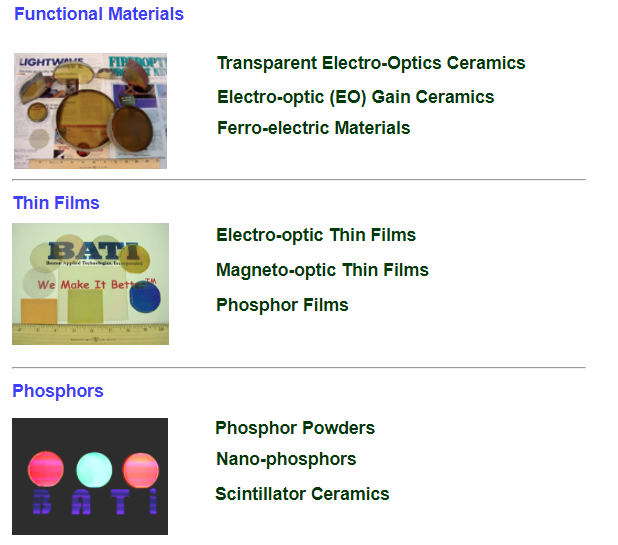

Functional Materials

Thin Films

Phosphors

Services

Imaging Systems

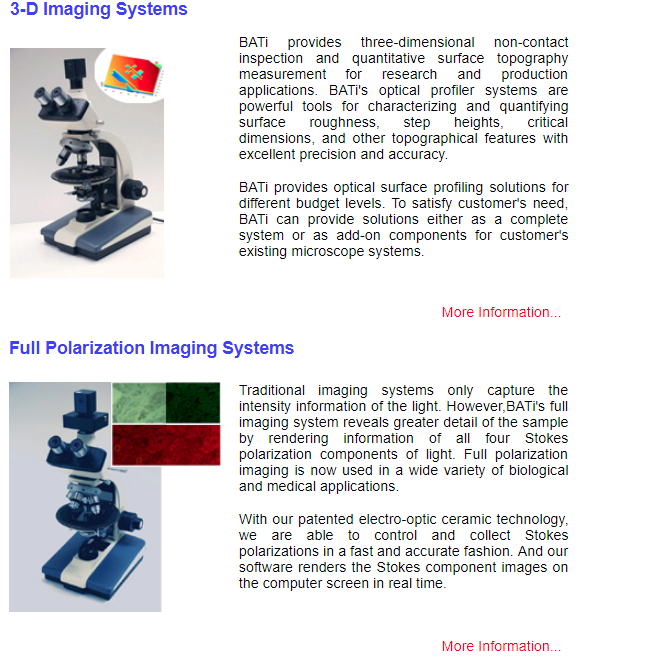

               •3-D Profiler

               •Stokes Imaging Systems

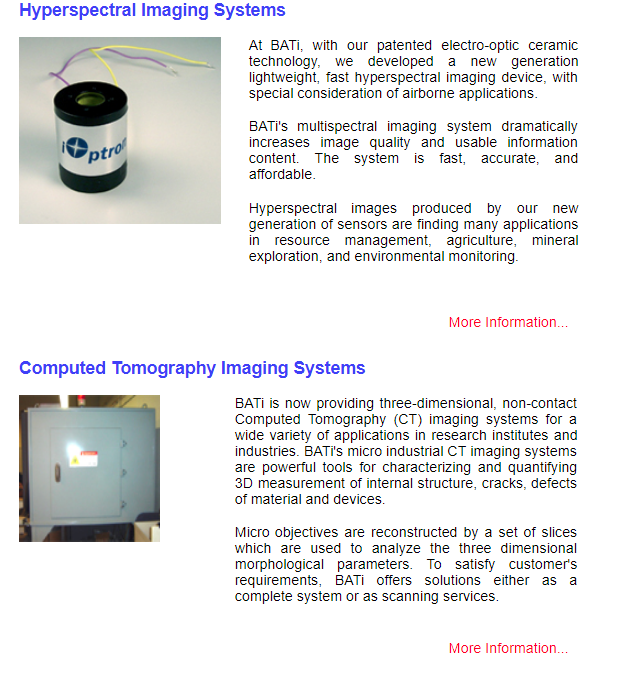

               •Hyperspectral Imaging Systems

              •Computed Tomoghraphy Imaging Systems



Photonic Devices




Advanced Materials

Boston Applied Technologies, Inc. (BATi) 's basic technology includes the state-of-the-art OptoCeramicTM materials in bulk and thin-film forms, both for solid-state, ultra-fast light controlling devices which have a large variety of bio-medical applications and remote sensing applications. BATi also provides innovative ferro-electric, megneto-optic and other funcional materials with low cost. BATi's scintillators, faster and brighter, are developed for medical imaging, nuclear medicine/therapy and nuclear physics.



Imaging Systems


Boston Applied Technologies, Inc. (BATi) provides functional materials, compact photonic devices, and complete imaging systems. All these are accompanied by easy-to-use, powerful control and analysis software. Our products are based on state-of-the-art OptoCeramicTMmaterials, utilizing polarization and florescence from visible to infrared light, combining expertise in optics, fiber optics and packaging. Applications include: life science, pharmaceutical research, dentistry, remote sensing, agriculture, new energy exploration, nuclear medicine/therapy, nuclear physics, environmental monitoring and telecommunications.





Products > Acrobat™


  • Polarization Controller/Polarization Transformer

  • Dynamic Polarization Rotator (DPR)

  • Polarization Maintaining Tap/ Monitor(PM-Tap)

  • Linear Polarization Converter(LPC)


Products > Acrobat™>PCM

Specifications

Attributes1,2

Performance

Wavelength   Range3

1530~1565nm,   1570~1610nm

Insertion   Loss2

1dB   max, <0.8dB typical

Speed4

<30µs

Input   Power5

<300mW

Polarization   Mode Dispersion

0.05ps

Polarization   Dependent Loss

<0.1dB

Return   Loss

>55dB

Activation   Loss6

0.1dB

Power   Consumption7

600mW   typical

Operating   Temperature Range

0to   70°C

Storage   Temperature Range

-40   to 85

Dimensions

22.3x11x7.8mm3





 Products >Acrobat™>PRM

Specifications

Attributes1,2

Performance

Wavelength   Range3

1310nm   / 1550nm (S,C,L)

Insertion   Loss4

<   0.6dB

Polarization Rotation

180   degree

Response   Time

<30µs

Input   Power

<300mW

Return   Loss

>55dB

Dimensions

26   x 10 x 8.5mm3

Power   Consumption7

600mW   typical

Operating   Temperature Range

0to   70°C

Storage   Temperature Range

-40   to 85

Dimensions

22.3x11x7.8mm3


Products > Acrobat™> PM-TAP

Specifications

Attributes1,2

Performance

Wavelength   Range3

1310/1550nm

Insertion   Loss

<   0.6dB

Spectral   Flatness

<   0.1dB

Extinction   Ratio

<   20dB

Tap   Output

0.05µA/µW   of output power

Input   Power

<300mW

Return   Loss

>55dB



 Products >Acrobat™>LPC

Specifications

Attributes1,2

Performance

Wavelength   Range3

1530~1565nm,   1570~1610nm

Insertion   Loss2

<   2dB

State   of Polarization (SOP)

Arbitrary   input and single linear output

Extinction   Ratio

<   20dB

Return   Loss

>55dB

Operating   Temperature Range

0to   70°C

Storage   Temperature Range

-40   to 85
