公司简介
美国HibriLaser公司是一家超快激光公司，公司专注于提供创新、尖端和稳定的高能超快光纤激光器和diode-pump固态激光器超快激光种子。其产品结构紧凑、可靠性高、短脉宽而被用于锁模超快激光的种子和超宽带宽ASE光源。
产品列表
1030nm mode-locked, ultrafast femtosecond seed laser

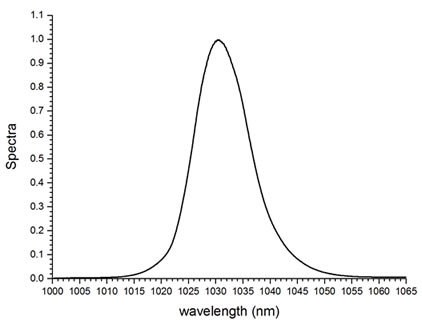

Hibri-fs-seed-1030 is a polarization-maintained ,mode-locked fiber laser. This femtosecond seed laser is compact and reliable ,with excellent pulse-to-pulse stability. A typical output spectra is shown in the following figure.
| Seed | Seed Option | |
| Wavelength | 1030 ± 5 nm | |
| Average Output Power | >10 mW (typically ~20mW) | >200mW |
| Spectral Bandwidth | >6nm (typically ~8nm) | >6nm (typically ~8nm) |
| Pulse Width Directly from Oscillator | 1-2 ps | |
| Compressed Pulse Width | <300 fs* | |
| Repetition Rate | 28 ±5 MHz | |
| Output Port - Standard | Fiber-Coupled FC/APC, Linearly Polarized | |
*with external compressor
Turnkey Operation, Self-Starting Laser Configuration
Compact Size
Maintenance Free
Low Cost of Ownership
Ultrafast Spectroscopy
Material Characterization
Seed for High Energy Ultrafast Solid State Laser
Microfabrication
Bioimaging
Cell Manipulation
Nonlinear Optics
1030nm mode-locked, ultrafast picosecond seed laser
Hibri-ps-seed-1030 is a polarization-maintained, mode-locked fiber laser.
| Seed | Seed Option | |
| Wavelength | 1030 ± 5 nm | |
| Average Output Power | >10 mW | >200mW |
| Spectral Bandwidth | < 0.5nm | < 0.5nm |
| Pulse Width Directly from Oscillator | 10-50 ps | |
| Repetition Rate | 2 -30 MHz | |
| Output Port - Standard | Fiber-Coupled FC/APC, Linearly Polarized | |
Ultra-broadband ASE source:U-ASE-G01-FiberPro

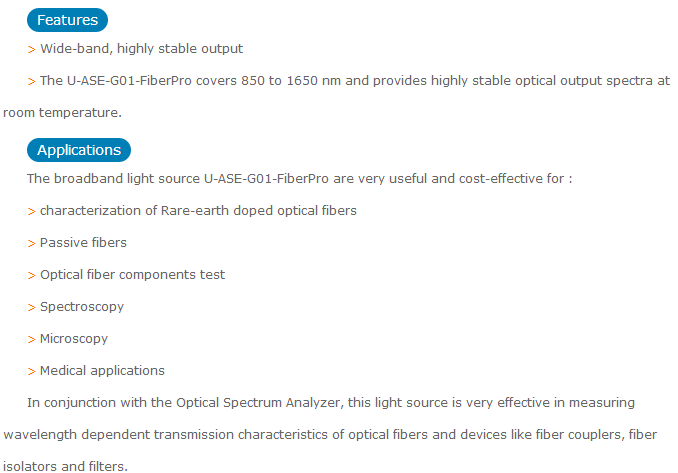

The U-ASE-G01-FiberPro is a continous wave (CW) ultra-broadband light source designed for wavelength-dependent characteristics measurement of special optical fibers(Yb, Er, Tm, etc.) and devices.
This wide-band, highly stable light source, has very long lifetime(typically>100,000 hours), provides highly reliable non-polarized, CW ASE light.
| Wavelength range | 850 to 1650 nm |
| Output Spectrum stability (peak-to-peak) | Maxmium:± 0.3 dB for whole range (at 20 °C, for 1 hour*, limited by Ando OSA) |
| Output Power stability (within 2 hours) | +/-1.5% |
| Output waveform | CW light |
| Output level (output from Corning Hi1060 optical fiber) | >-55 dBm (900-1150nm), (Resolution 1nm) >-58 dBm, (1350-1600nm); (Resolution 1nm) Other band >-70dBm(1150-1350nm),(Resolution 1nm) |
| Output format | Single mode Corning Hi1060 FC/PC, Supplied as standard |
Note: The standard optical connector is FC/PC type. Inquire for information on other optical connectors.
C-band 1530-1560nm: spectral smoothness < 1dB;
Full width half maximum > 45nm
Typical output spectra is shown in the following figure 2.
应用领域
Research |
Medical Applications |
Bioimaging |
