Lastronics is specialized in the development, manufacturing and sale of laser diode technology with high peak power and associated power supplies, controls and accessories as part of large laser systems. Recently, Lastronics also offers the manufacturing of diode pumped, solid state laser amplifiers based on Yb3+-doped materials.
Well known research institutions as our customers employ such systems for research and development. Lastronics was established in 2009 and evolved from Töpfer & Hein GbR which was founded in 2001 focusing on the development of pulsed laser diode drivers with high peak power and opto-electronical systems.
产品列表
pump modules

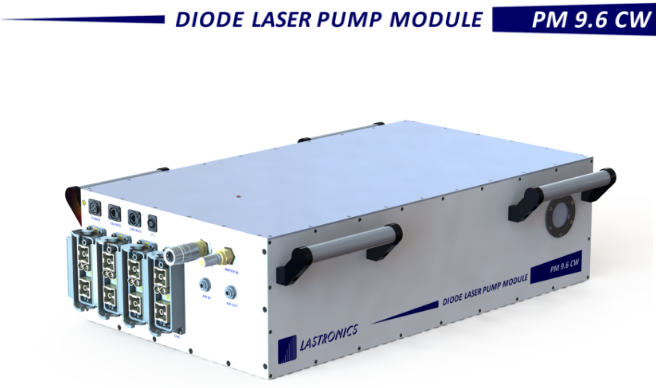

Technical data - Diode Laser Pump Module PM 9.6CW | |
|---|---|
| Peak power: | 2,0/4,0/8,0 kW pulsed 1,1/2,2/4,4 kW c.w. |
| Number of built-in 8-bar stacks | [1 ... 4] |
| Typical/max. operating current: | 200 A / 220 A c.w. |
| Maximum duty cycle: | [0 ... 20]% + c.w. |
| Wavelength: | 808 nm, 940-980 nm |
| Spectral width: | Depending on stack type, pump current and DC |
| Beam shape: | rectangular, hexagonal, circular (fiber coupled) |
| Typical spot size: | Ø 2,2mm, NA 0.20, homogenized profile |
| Polarisation: | Linear polarized output (2-channel) Unpolarized output (4-channel) |
| Cooling: | Microchannel-cooled, DI water |
| Communication interface: | LAN |
| Device monitoring: | Water flow, temperature, humidity, forward voltage |
| Pulse width: | c.w., [0,2 ... 2,5] ms |
| Warranty: | 2 years / 1 Gshots |
| IP-class: | IP-40 |
| Optional features: | Wavelength stabilization via bias current, cooling temperature or VBG |

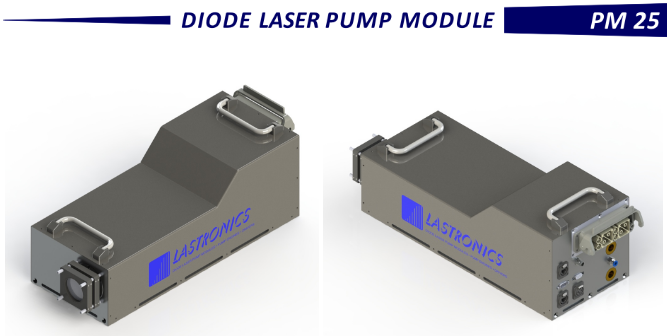

Technical data - Diode Laser Pump Module PM25 | |
|---|---|
| Peak power: | max. 20 kW [25 kW from stacks] |
| Number of built-in 8-bar stacks | [1 ... 4] |
| Typical/max. operating current: | 800 A / 1.200 A |
| Maximum duty cycle: | [0 ... 10] % |
| Wavelength: | 794 nm, 808 nm, 885 nm, 940-980 nm |
| Spectral width: | Depending on stack type |
| Beam shape: | rectangular, hexagonal, circular (fiber coupled) |
| Typical spot size: | < 1,5 mm diameter, 0.2 NA, for fiber coupling |
| Polarisation: | Linear polarized output |
| Cooling: | Tap water cooled |
| Communication interface: | LAN |
| Device monitoring: | Water flow, temperature, humidity, forward voltage |
| Pulse width: | (0.2 - 4.0) ms |
| Warranty: | 2 years / 1 Gshots |
| IP-class: | IP-40 |
| Optional features: | Wavelength stabilization via bias current, cooling temperature or VBG |

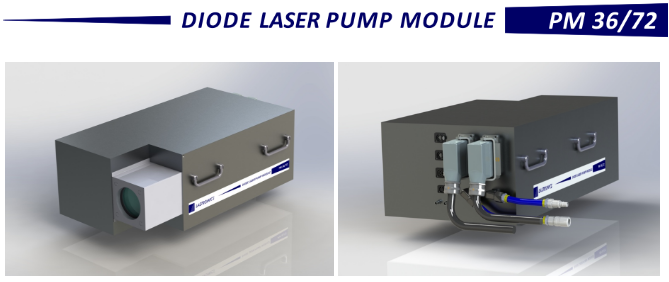

Technical data - Diode Laser Pump Module PM36/72 | |
|---|---|
| Peak power: | [30 ... 60] kW; (72 kW from stacks) |
| Number of built-in 8-bar stacks | [10 ... 20] |
| Typical/max. operating current: | 800 A / 1.200 A |
| Maximum duty cycle: | [0 ... 10] % |
| Wavelength: | 794 nm, 808 nm, 885 nm, 940-980 nm |
| Spectral width: | Depending on stack type |
| Beam shape: | rectangular, hexagonal, circular (fiber coupled) |
| Typical spot size: | 12 x 12 mm², 0.2 NA, homogenized profile |
| Polarisation: | Linear polarized output |
| Cooling: | Tap water cooled |
| Communication interface: | LAN |
| Device monitoring: | Water flow, temperature, humidity, forward voltage |
| Pulse width: | (0.2 - 4.0) ms |
| Warranty: | 2 years / 1 Gshots |
| IP-class: | IP-40 |
| Optional features: | Wavelength stabilization via bias current, cooling temperature or VBG |

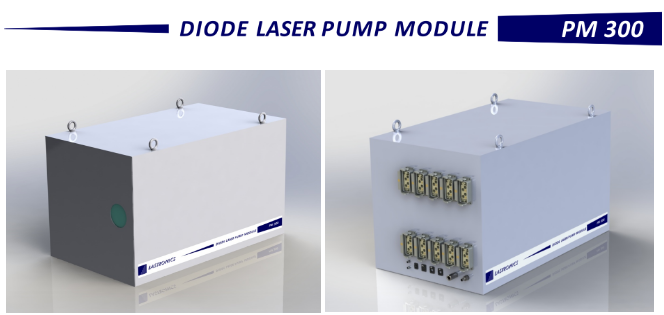

Technical data - Diode Laser Pump Module PM300 | |
|---|---|
| Peak power: | max. 300 kW [360 kW from stacks] |
| Number of built-in 8-bar stacks | [40 ... 100] |
| Typical/max. operating current: | 800 A / 1.200 A |
| Maximum duty cycle: | [0 ... 10] % |
| Wavelength: | 794 nm, 808 nm, 885 nm, 940-980 nm |
| Spectral width: | Depending on stack type |
| Beam shape: | rectangular, hexagonal, circular (fiber coupled) |
| Typical spot size: | 30 x 30 mm² homogenized profile (fully equipped) |
| Polarisation: | Linear polarized output |
| Cooling: | Tap water cooled |
| Communication interface: | LAN |
| Device monitoring: | Water flow, temperature, humidity, forward voltage |
| Pulse width: | (0.2 - 4.0) ms |
| Warranty: | 2 years / 1 Gshots |
| IP-class: | IP-40 |
| Optional features: | Wavelength stabilization via bias current, cooling temperature or VBG |
Laser Diode Drivers

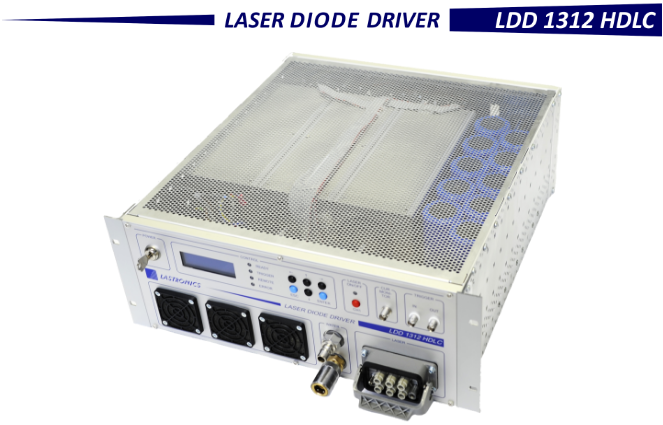

Technical data - laser Diode Driver LDD 1312HDLC | |
|---|---|
| Drive current: | 500 A |
| Drive current resolution: | 1 A |
| Rise time (10%-90%): | 25 µs (0.7 m cable length), 50 µs (2.0 m), 100 µs (6.0 m) |
| Fall time (10%-90%): | 25 µs (0.7 m cable length), 50 µs (2.0 m), 100 µs (6.0 m) |
| pulse width: | (100 ... 2500) µs |
| Repetition rate: | Single shot ... 250 Hz |
| Max. duty cycle: | 25%, DC |
| Max. power consumption: | 3.600 W |
| Efficiency: | > 83% (at 100 Hz, 1ms, 330 A) |
| Pulse stabillity (energy): | < 0.1% p-p |
| Pulse ripple: | < 0.1% rms |
| Pulse to pulse jitter | < 1.0 µs |
| Compliance voltage: | 76 V |
| Bias current: | (0 ... 10) A/channel |
| Output connector Output cable | Harting HAN Modular bedea LSX hfl 15050500 |
| Trigger in: | TTL, falling/rising edge |
| Trigger out: | TTL, falling/rising edge (isolated) BNC front panel |
| Current readout: | BNC front panel |
| Interlock: | (10 ... 12) V DC at 1 kOhm floating 2x RJ 45 connector (parallel, isolated) |
| CAN: | Special control software and hardware provided 2x RJ 45 connector (parallel, isolated) |
| Input AC Voltage: | 230 V (+10% / -5%), 50 Hz / 60 Hz |
| Size (W x H x D: | 19" x 177 mm x 502 mm |
| Weight | up to 26 kg |
| Safety comliance: | CE |
| Cooling: | 3 Air fans (< 55 dB(A)), Water |
| Safety settings: | Maximum drive current per channel up to 330 A Maximum repetition rate up to 100 Hz Pulse count (per channel) Maximum pulse width up to 2.5 ms |
| LED indicators: | Device ready (green) Error (red) Trigger (green/red) Channel 1 (red/green) Remote (green) |
Technical data - Laser Diode Driver LDD 2890 | |
|---|---|
| Capacitor bank charge voltage | [0 ... 90] V |
| Drive current | [0 ... 800] A |
| Pulse width | [0,1 ... 4,0] ms |
| Bias current | [0,0 ... 5,0] A |
| Repetition rate | Single shot ... 100 Hz |
| Maximum duty cycle | 10% DC |
| Max. power consumption | 2.700 W |
| Pulse energy stability | < 0,1% peak-to-peak |
| Pulse ripple | < 0,1% rms |
| Input AC voltage | [90 - 250] V, [50 - 60] Hz |
| Cooling | 2 air fans, BG noise < 55 db(A), water |
Electronics
Technical data - Interlock Control ITL 9 | |
|---|---|
| Input voltage: | (85-447) V, AC (47-440) Hz |
| Input current: | 0.165 A at 230 V AC |
| Digital input level: | CMOS |
| Analogue input: | Customized |
| Interface: | CAN-Bus |
| Housing: | 19" or stand alone |
| Weight: | Max. 1.5 kg |
| Size (W x H x D): | 480 x 133 x 250 mm³ |
| Up to 144 signals |
| 24 V power supply for pump modules |
Lastronics Plug-in cards
The Lastronics plug-in card system is the basis of the versatility of the ITL 9 interlock device. The ITL 9 comes up with nine free plug-in card slots, into which different monitoring or power providing plug-in cards can be inserted as they are needed. Various parameters and/or signals can be monitored, and if one of them reaches critical potential, the interlock unit ITL 9 will discontinue laser operation.
| Examples for Lastronics plug-in cards are: |
|
Amplifiers
| Going beyond the assembly of pump engines we at Lastronics now design and produce our own product range of laser amplifiers, amplifier chains or even whole laser systems. We can rely on the experience of our employees in the field of laser construction, who during their research activities at universities and institutes realized, among others, the following laser sources: |
| - 500 mJ, 300 fs, 10 Hz (Cryo Yb3+:CaF2, burst, 1000 pulses per burst, fRep = 1 MHz) |
| - 10 mJ, 1 ps, 10 Hz (Yb3+:KGW/Yb3+:KYW) |
| - 200 mJ, 3 ns, (1 … 10) Hz (Yb3+:YAG) |
| - 1.1 J, 6 ns, 1 Hz (Cryo Yb3+:YAG, 46% optical-optical efficiency) |
| - 8 J, 200 fs @ 1/40 Hz (Yb3+:FP15, POLARIS) |
| At the moment we are concentrating on two different product lines: High energy Yb3+-based amplifier chains: Implementing the pump engines offered by Lastronics we offer to assemble amplifiers with a wide range of output energies. Starting with a 100 mJ preamp, which is based on pumping Yb3+:CaF2 with a single PM 2.4 - up to custom tailored power amplifiers utilizing several PM 80 and generating more than 100 J output energy with a bandwidth suitable for 200 fs pulses are possible. Please feel free to contact us for details. High repetition rate, high energy Ti:Sa amplifier pump lasers: Those are a challenge in terms of cooling the active medium of the pump laser. Using cryogenically cooled Yb3+:CaF2, an output energy (@515 nm) in the Joule order of magnitude is possible with a repetition rate of up to 100 Hz. Again, exact numbers are subject to the configuration of the Lastronics pump engine. |
Accessories

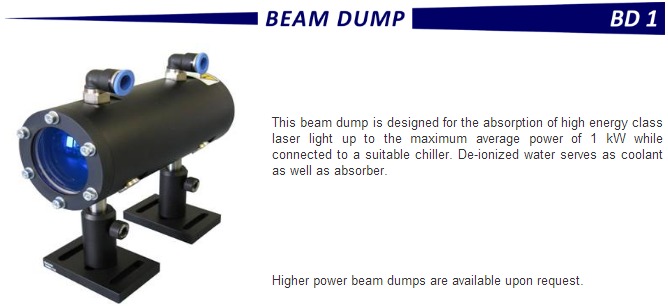

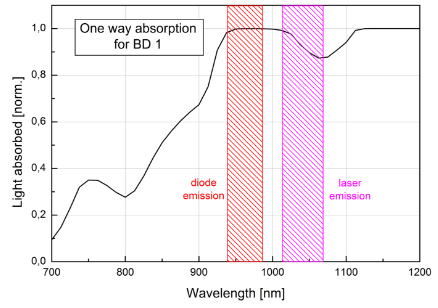

Technical data - Diode Laser Pump Module 2.4 | |
|---|---|
| Peak power: | 2.0 kW |
| Power Rating: | Maximum absorption 1 kW |
| Dimensions: | L x W x H: 180 x 72 x 193 mm³ Free aperture: 49 mm Beam entrance adjustable 3"-6" above base plate |
| Coolant: | De-ionized water recommended |
| Connectors: | 2x push-in for D=10 mm PU tube to be connected to a chiller with colling capacity larger than absorbed laser power |
