Tunable Lasers and Optical Testing

Tunable lasers, tunable filters, optical test & measurement equipment, and laboratory components.

Learn more >


OCT Imaging / Sensing

Optical Coherence Tomography systems, swept sources and probes.


Learn more >


Optical Components

Components for optical communications.


Learn more >




产品列表:

Optical Instruments

波長可変光源


Tunable Lasers

In 1989, Santec became the world’s first manufacturer of single mode external cavity tunable lasers. Developing the technology over the years, we have optimized the lasers to have a high sweep speed, wide tuning range, narrow linewidth and low noise.

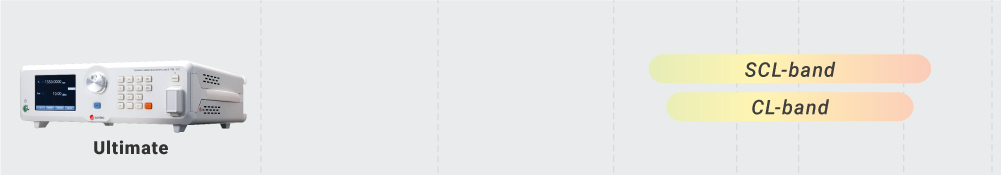

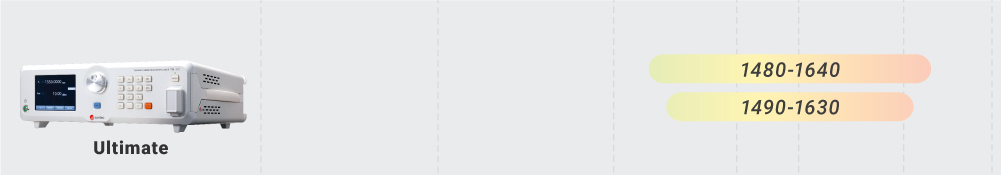

SCL-band / CL-bandSCL-band / CL-band

SCL-bandSCL-band

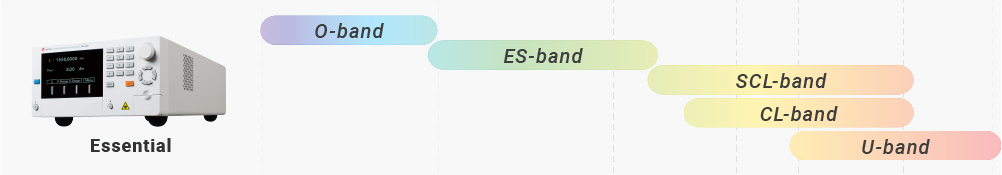

O-band / ES-band / SCL-band / CL-bandO-band / ES-band / SCL-band / CL-band

C-band / L-bandC-band / L-band

1260 O-band 1360 ES-band 1460 S-band 1530 C 1565 L-band 1625 U-band 1675

TSL Performance Comparison Chart

TSL for Optical Component Test

Ultimate Performance Tunable Laser

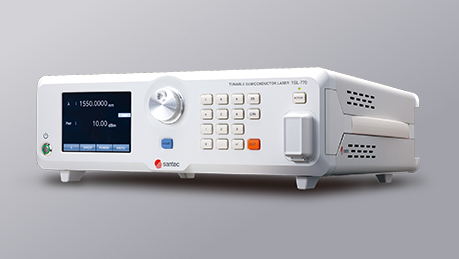

TSL-770

Our highest accuracy, fastest tuning, lowest noise and narrowest linewidth laser.

  • 200 nm/s Rapid Sweep

  • Linewidth < 60 kHz

  • < 1/10 Frequency Fluctuation (vs. conventional model)



TSL-770



Premium Performance Tunable Laser

TSL-710

Narrow linewidth, low noise and premium performance.

  • Excellent Accuracy (± 2 pm) & Resolution (0.1 pm)

  • Narrow Linewidth < 100 kHz

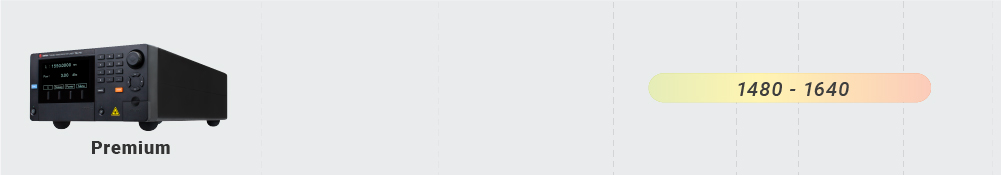

  • Wide Tuning Range from 1480 to 1640 nm



TSL-710



Essential Tunable Laser

TSL-550

Our best-selling tunable laser for all applications from laboratory to factory.

  • Wide Variety of Wavelength Options from 1260 to 1680 nm

  • High Output Power + 13 dBm

  • High Signal-to-Noise Ratio: 90 dB/0.1 nm



TSL-550



Ultra-Wideband Tunable Laser

Full-band TSL

420 nm tuning, high performance tunable laser system

  • Wide Wavelength Range 1260 to 1680 nm

  • Easy and Automated Operation by Software



Full-band TSL



Compact & Robust Tunable Laser

WSL-110

Programmable, high power and step tuning laser

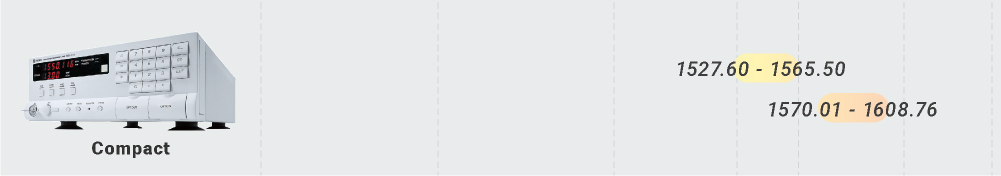

  • C-band or L-band Tuning with High Resolution

  • High Output Power > + 15 dBm



WSL-100



Compact Tunable Laser

WSL-100

Thank you for your interest in our Tunable Laser WSL-100.
We are sorry to inform you that we have decided to discontinue the production of “Compact Tunable Laser WSL-100″

Product: Compact Tunable Laser WSL-100
Final Order date: 31 January 2020
End of support for subject products: 31 January 2027
Alternative product: WSL-110


Optical Test Platforms

We offer a range of complete systems for measuring optical properties by combining our tunable lasers, optical switches, polarization controller, power meter and software. Please feel free to contact us for customization according to your needs.

Swept Test System for Optical Components

Swept Test System

IL / WDL / PDL measurement of optical components with fast scan, high resolution and accuracy


  • Advanced Rescaling Algorithm (High Resolution 0.1 pm)

  • Real-time Power Referencing (High Repeatability 0.02 dB)



OTF-350



Multi-channel Optical Power Meter for Swept Test System

MPM-210 / MPM-211, 212, 213

The perfect tool for very fast simultaneous measurement of multi-port optical devices

  • High Speed Measurement
    (Up to 1 million logging sampling points per port)

  • Power Meter Module (MPM-211 / 212)

  • Current Meter Module (MPM-213)

  • Up to 20-Port Measurement



MPM-210
MPM-210



Multi-Photodetector Array

MPA-100

MPA-100 is a highly integrated rack mounted pigtailed photo-detector array.

1/10 Per-channel cost compared with typical optical power meters.

  • By packing more into the MPA-100 and sharing electrical circuitry provides excellent cost-performance compare with standard multiple optical power meters.

1/10 Smaller footprint compared with typical optical power meters

  • Leveraging Santec arrayed photo detector technology, we save you space in this rack mounted system.





MPA-100
MPA-100






Tunable Filters

Our Tunable Filters can be used in a wide range of applications from R & D to production. We have both Gaussian, using dielectric multilayer coatings, and Flat-Top, using gratings, filter profiles available.

Tunable Filter Selection Guide

Product CodeProduct ImageFilter ProfileFilter SlopeControlWavelengthBandwidth
OTF-980
OTF-980
Flat-Top1000 dB/nmProgrammable
Touch Screen
C&L-band /85 nmTunable
OTF-350
OTF-350
Flat-Top400 dB/nmManualC&L-band /80 nm*
O-band /40 nm
Tunable
OTF-930
OTF-930
Gaussian-ProgrammableC&L-band /80 nm*
O-band /80 nm
Fixed/Select
OTF-320
OTF-320
Gaussian-ManualC&L-band /80 nm
C-band /40 nm
L-band /40 nm*
O-band /40 nm
Fixed/Select

* Contact us for availability

Ultra-Steep Tunable Filter

OTF-980

Our flagship programmable bandwidth and wavelength Tunable Filter, loaded with options.

  • Center Wavelength and Bandwidth can be Tuned Independently

  • Ultra-Steep Filter Slope 1000 dB/nm(typ.)

  • Peak Search Function

  • Wide Range of Control Interfaces, inc. Touchscreen



OTF-980



Gaussian shape Tunable Filter

OTF-930

Programmable thin-film dielectric coating based Tunable Filter

  • 80nm tuning range, 0.01 nm resolution

  • Low PDL (< 0.1 dB) & PMD (< 0.1 ps)

  • Peak Search Function



OTF-930



Flat-Top Manual Tunable Filter

OTF-350

Manually controlled compact wavelength & bandwidth Tunable Filter

  • Flat-Top Filter Shape and Low IL

  • Wavelength Range: 1530 to 1610 nm (C&L Band)

  • Crosstalk > 50 dB(typ.)



OTF-350



Manual Tunable Gaussian Filter

OTF-320

80 nm tuning thin-film dielectric coating based Tunable Filter

  • Gaussian Filter Shape

  • Excellent PDL and PMD

  • Analog Wavelength Indicator



OTF-320






Polarization Extinction Ratio Measurement

Polarization Extinction Ratio Meter

PEM-340

Rapid & Accurate measurement for PER, Angle, and Power

  • 50 dB Dynamic Range for PER Measurement

  • Wide Dynamic Input Power Range

  • Interchangeable Connectors: FC, SC or LC



PEM-340



45 dB Highly Polarized Light Source

PLS-100

The most suitable light source for PER measurement

  • Adjustable Polarization Axis, 0 to 180 deg

  • High PER, up to 45 dB (typ.)

  • High Output Power and Power Stability



PLS-100





Optical Components

Spatial Light Modulator

Our reflective LCOS (liquid crystal on silicon) is an advanced spatial light modulator for full high resolution applications. The Full-high definition (Full-HD) resolution, 10-bit (1024 gray levels) and excellent phase stability (~0.003π rad.) make ultra-fine light modulation possible for various applications.

SLM Product Line-Up

Model No.Features
SLM-300High-Power LCOS Spatial Light Modulator
SLM-250UV Hardened Spatial Light Modulator
SLM-200Full HD Reflective Spatial Light Modulator

High-Power LCOS Spatial Light Modulator

SLM-300



SLM-300





Our spatial light modulator (SLM) is based on reflective liquid crystal on silicon (LCOS) micro-display technology. The SLM-300 high-power model holds the world record for high-power durability up to CW 200 Watts. The SLM-300 has 100 times higher power durability when compared with Santec’s conventional SLM product, the SLM-200.

Features

Specifications

Wavelength option

Introduction Video

Download



【Features】

  • High Power-durable LCOS based SLM

  • High Phase Resolution 10-bit (1024) Gray Level

  • Ultra Low Phase Noise ~0.003πrad.(Typ.)


【Application】

  • Laser processing

  • 3D printing

  • IC trimming

UV Hardened Spatial Light Modulator

SLM-250



UV hardend Spatial Light Modulator SLM-250



Reflective LCOS (Phase only)

We have introduced an ultraviolet (UV) hardened spatial light modulator (SLM) based on Liquid Crystal on Silicon (LCOS) technology. This product supports WUXGA (1920×1200) and Full-HD (1920×1080) video resolutions. The 2nd generation SLMs from Santec offer 4 times better gray scale resolution and 10 times better phase stability when compared with conventional products in the market and the 1st gen Santec SLMs.

The UV model SLM (SLM-250) has a 42 times higher UV tolerance compared to the visible to Infra-Red (IR) wavelength SLM-200. A power density up to 10mW/cm2 is sustainable using a novel liquid crystal and dielectric mirror design.
The SLM-250 follows the popular first generation SLM-100 from Santec that has been deployed in various industrial and scientific applications, including beam shaping, computer-generated holograms, optical manipulation, and wave-front compensation.

Application

Specifications

Download



【Application】

  • Laser processing

  • Biology sensing

  • 3D printing

  • IC triming



Figure 1 SLM-250, Lifetime test as a function of optical power handling.
Figure 1 SLM-250, Lifetime test as a function of optical power handling.



Full HD Reflective Spatial Light Modulator

SLM-200



SLM-200



Our reflective LCOS (liquid crystal on silicon) is an advanced spatial light modulator for full high resolution applications. The Full-high definition (Full-HD) resolution, 10-bit (1024 gray levels) and excellent phase stability (~0.001π rad.) make ultra-fine light modulation possible for various applications.

Features

Specifications

Applications 1

Applications 2

Download

■User-friendly DVI interface

■操作が容易なGUI付属



■High Resolution: 10-bit (1024 gray levels)



■高解像度



■Ultra-low Phase Noise: ~0.002π rad.



■高安定度



■Super Flatness Available: λ/40 @633 nm

The flatness of the LCOS can be corrected to λ/40 with the accompanying lookup table.



■高安定度




Optical Power Monitor


IPD/MTP/UTP are optical power monitoring devices consisting of individual tap-integrated photo detector.
They eliminate the need for a separate optical fiber coupler/splitter and a photo detector, and provide a simple and low cost solution for optical power monitoring of DWDM, optical switch and amplifier systems.

Optical Power Monitor Product Line-Up

Model No.Features
UTP-1Ultimate Tap Photodetector
MTP-1/8/10/12Miniature Tap Monitor
IPD-1/4/8/10Integrated Tap Photo Detector
IPD-UDUnidirectional Tap-Integrated Photo Detector
PM-IPDIntegrated Tap Photo Detector with PMF
PDA-1/4/8/10Fiber-Pigtailed Photo Detector
MPD-1Miniature Fiber-Pigtailed Photo Detector
IPM-8Digital Output multi-channel Monitor

Ultimate Tap Photodetector

UTP-1



IPM-8



UTP is an Ultra-Compact single, high directivity, uni-directional tap monitor. Compared to our current uni-directional MTP-1, the new UTP-1 has a 78% size reduction, allowing the customer to reduce their module’s footprint while increasing design capability.

  • Ultra-Compact Size
    (Reduced the volume 78% from MTP1)

  • High Directivity

  • RoHS Compliant

  • Pin Bending is Available

  • Telcordia GR-468 Qualified

  • Minimum Fiber Bending Radius of 5mm Available

Miniature Tap Monitor

MTP-1/8/10/12



MTP-1/8/10/12MTP-1/8/10/12



MTP is a miniaturized tap-integrated photo detector array with 8 or 10 channels. (MTP-8, MTP-10 respectively) Santec has realized a significant size reduction of our standard IPD (Integrated Photo Detector) series, while maintaining high performance and reliability. The MTP series photo detector arrays are suitable for the high-density integration for next generation optical network systems.

  • Extremely Compact Design(Reduced the volume 75% from IPD-8)

  • Telcordia GR-468-CORE Qualified

  • Variety of Tap Ratio

  • RoHS Compliant



【Applications】

  • Power and Channel Monitoring for WDM Systems

  • Power Monitoring in any Optical Communications


Integrated Tap Photo Detector

IPD-1/4/8/10



PM-IPDPM-IPD



IPD is an optical power monitoring device consisting of individual tap-integrated photo detectors. The IPD is very compact and can be easily mounted on a PCB for system use. Optical properties are excellent and include a broad wavelength range covering C and L -band with low insertion loss and high sensitivity.
The IPD eliminates the need for an optical fiber coupler/splitter and a separate photo detector. The IPD provides a simple and low cost solution for optical power monitoring of DWDM, optical switch and amplifier systems.

  • Excellent Optical Performance

  • Compact Design

  • Custom Build Available

  • Telcordia GR-468 Qualified

  • RoHS Compliant



【Options】

  • IPD-UW
        Operates over a wide wavelength range, 1260 nm-1610 nm

  • IPD-UD
        Unidirectional with high PD isolation (>20 dB) between input and output ports.

  • IPD-F
        Integrated filter detects only a selected wavelength range (100, 200 GHz, etc).

  • PM-IPD
        Polarization maintaining version with high PER, >20 dB.

Unidirectional Tap-Integrated Photo Detector

IPD-UD



PM-IPD




Unidirectional IPD is an optical power monitoring device designed to be only sensitive to light propagating in one direction. The IPD-UD is compact and can be easily mounted on a PCB for system use. Besides enhanced directivity the optical performance of the IPD-UD mirrors that of the standard IPD, including a broad wavelength range, covering C and L band, with low insertion loss and high sensitivity.
The IPD eliminates the need for an optical fiber coupler/splitter and a photo detector. The IPD provides a simple and low cost solution for optical power monitoring of DWDM, optical switch and amplifier systems.

  • Excellent Optical Performance

  • High Directivity

  • Compact Design

  • 1, 4, 8 and 10 channel versions available

  • Custom Build Available

  • Telcordia GR-468 Qualified

  • RoHS Compliant


Integrated Tap Photo Detector with PMF

PM-IPD



PM-IPDPM-IPD



IPD with PMF(Polarization Maintaining Fiber)is an optial monitoring device consisting of individual tap-integrated photo detectors. The IPD is very compact and is easily mounted on a PCB for system use. Optical properties are excellent and include a broad wavelength range covering C and L -band with low insertion loss and high sensitivity.
The IPD eliminates the need for an optical fiber coupler/splitter and a separate photo detector.

  • Excellent Optical Performance

  • High Polarization Extinction Ratio

  • Compact Design

  • CUstom Build Available

  • Telcordia GR-468 Qualified

  • RoHS Compliant


Fiber-Pigtailed Photo Detector

PDA-1/4/8/10
PDA-1/4/8/10

PDA-1/4/8/10

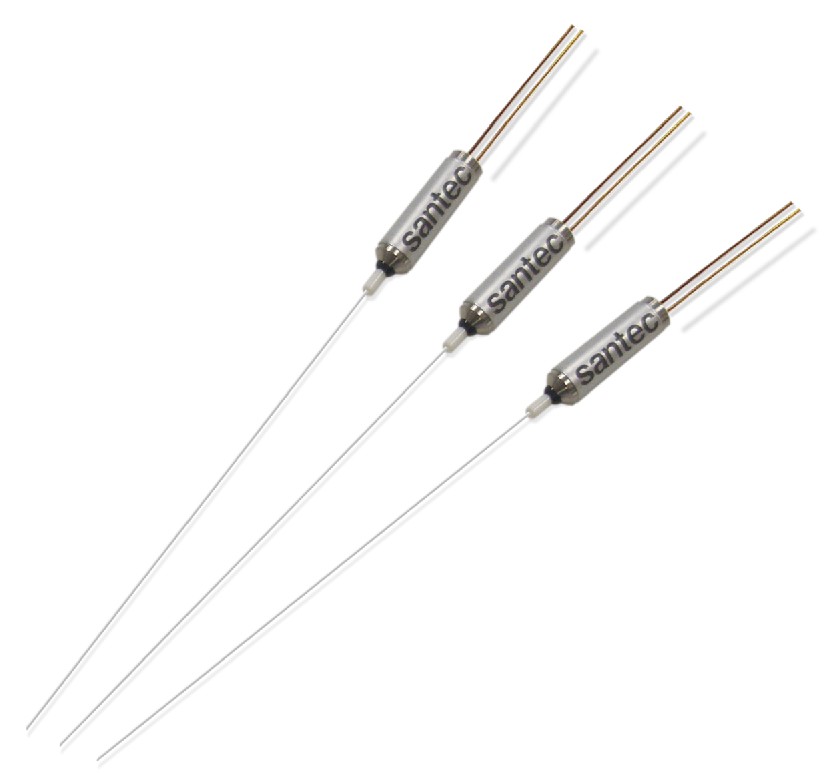

PDA is an optical power monitoring device consisting of terminating photo detectors that are integrated with fiber inputs. The PDA is very compact and is easily mounted on a PCB for system use.
The PDA provides a simple and low cost solution for power monitoring of DWDM and amplifier systems.

  • Excellent Optical Performance

  • Compact Design

  • Telcordia GR-468-CORE Qualified

  • RoHS Compliant



【Applications】

  • Power and Channel Monitoring for WDM Systems

  • Power Monitoring in any Optical Communications


Miniature Fiber-Pigtailed Photo Detector

MPD-1
MPD-1

MPD-1



MPD is an optical power monitoring device consisting of terminating photo detectors that are integrated with fiber inputs. The MPD’s ultra-small packaging makes it easy to mount on a PCB for system use.
The MPD provides a simple and low cost solution for power monitoring of DWDM and amplifier systems.

  • Ultra-small Packaging (Dia.3 x 11 mm)

  • Excellent Characteristics

  • Compact Design

  • Telcordia GR-468-CORE Qualified

  • RoHS Compliant



【Applications】

  • Power and Channel Monitoring for WDM Systems

  • Power Monitoring in any Optical Communications


Digital Output Multi-Channel Monitor

IPM-8



IPM-8IPM-8



IPM-8 is an integrated tap-monitor and a high dynamic range log-amplifier module for any DWDM application. This device detects optical signal, and calculates to absolute optical power using a calibration table.
The optical power data can be accessed from electrical communication interface.

  • Small Package

  • Good Accuracy

  • Wide Dynamic Range

  • I2C and RS-232C InterfaceIPM-8 (English)


Variable Attenuator


The MOVA/COVA series are voltage driven optical variable attenuators based on MEMS (Micro-Electro Mechanical System) technology.

Variable Attenuator Product Line-Up

Model No.Features
COVA-1Compact Optical Variable Attenuator
MOVA-1MEMS Attenuator
MOVA-HLow Control Voltage High Speed MEMS Attenuator
PM-MOVAPM-MEMS Attenuator




分享到 :
