公司简介
Bristol Instruments公司成立于2005年，总部位于纽约附近的罗切斯特。由Burleigh仪器的三名负责技术和市场的高管发起成立，其团队在激光和精密仪器的设计、制造和销售方面有超过75年的经验。
产品列表
PRODUCTS
Bristol Instruments offers a variety of optical interferometer-based products for scientists and engineers who are interested in Laser Spectral Characterization, WDM Wavelength Testing, or Non-Contact Thickness Measurement. Wavelength meters and spectrum analyzers are available to characterize CW and pulsed lasers that operate from the visible to the mid-IR. The wavelength of WDM lasers and WDM signals can be measured with a family of optical wavelength meters and multi-wavelength meters. And, an optical thickness gauge is offered to measure absolute thickness, a dimension that is critical in the development and production of materials such as plastic films, glass tubing, and ophthalmic products.
WAVELENGTH METERS - SCIENTIFIC
Bristol Instruments’ wavelength meters are for scientists and engineers who need to know the exact wavelength of their lasers. These systems use proven interferometer-based technology to measure absolute wavelength to an accuracy as high as ± 0.0001 nm. To achieve the reliable accuracy that is expected from Bristol Instruments, all of its wavelength meters include a built-in wavelength standard for continuous calibration. Systems are available for CW and pulsed lasers that operate at wavelengths from 375 nm to 12 µm.

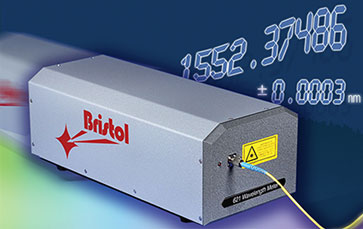

671 Series - CW lasers, 375 nm - 12 µm
871 Series - Pulsed and CW lasers, 375 - 1700 nm, 1 kHz measurement rate
521 Series - CW lasers, 400 - 1700 nm, low-priced alternative
WAVELENGTH METERS - WDM
Bristol Instruments provides a family of optical wavelength meters and multi-wavelength meters designed specifically for the testing of WDM lasers and WDM systems. Absolute laser wavelength is measured to an accuracy as high as ± 0.3 pm. This performance is guaranteed by continuous calibration with a built-in wavelength standard and is traceable to NIST standards. Straightforward operation and rugged design satisfy the needs of both the R&D scientist and the manufacturing engineer.
428 Series - Multi-wavelength, CW and modulated signals

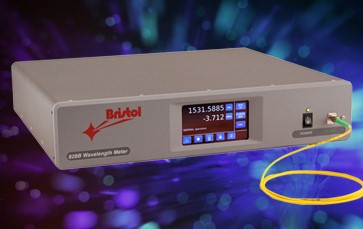

828B System - 1 kHz measurement rate, single wavelength, CW and modulated signals
228 Series - Single-wavelength, CW signals
328 Series - Single-wavelength, CW and modulated signals
SPECTRUM ANALYZERS
The spectrum analyzers from Bristol Instruments provide high-accuracy wavelength measurement and high-resolution spectral analysis in one instrument. These systems are for scientists and engineers who need to know the wavelength, bandwidth, and longitudinal mode structure of their lasers with the reliable accuracy that is required for the most demanding applications.

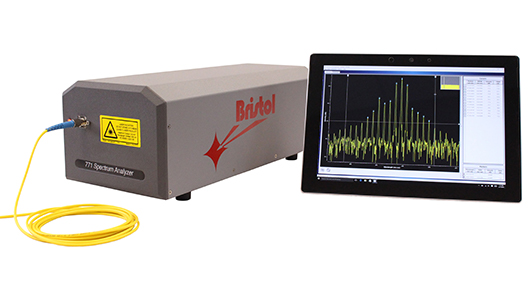

771 Series - CW and high-repetition rate pulsed lasers, 375 nm – 12 μm

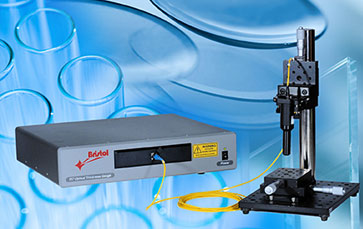

THICKNESS GAUGES
Bristol Instruments' optical thickness gauges are a simple and non-destructive way to precisely measure thickness of a variety of transparent and semi-transparent materials. Thickness information is critical in the development and production of materials such as contact and intraocular lenses, and medical products including balloon catheters, stents, bags, and tubing. Bristol combines high accuracy with straightforward operation and rugged design to make these instruments ideal for both laboratory and manufacturing environments.
157 Series - Accuracy of ± 0.1 µm with repeatability of ± 0.02 µm
137 Series - Accuracy of ± 1 µm with repeatability of ± 0.05 µm
技术能力
CAPABILITIES
CORE TECHNOLOGY
Bristol Instruments is a world leader in optical interferometer-based instrumentation. Its proven Michelson interferometer and Fizeau etalon technologies ensure that its products provide reliably accurate measurements for scientists and engineers who are involved in scientific research, fiber communications, and optical metrology. Bristol's flagship products accurately characterize the wavelength and spectral properties of lasers used by researchers at universities, government laboratories, and industrial laboratories. They are also used for the development and production testing of laser transmitters used in optical fiber communications. In addition, Bristol Instruments provides products to measure critical physical dimensions of materials such as plastic films, medical membranes, glass tubing, and ophthalmic products.
LASER SPECTRAL CHARACTERIZATION
The most complete laser wavelength and spectral analysis from the visible to the mid-IR.
High-Resolution Laser Spectroscopy
Mid-IR Laser Spectroscopy
Tunable Diode Laser Spectroscopy
Photochemistry
Chemical and Environmental Sensing
Optical Cooling and Trapping
Laser Development and Characterization
Optical Remote Sensing
and more...
WDM WAVELENGTH TESTING
Optical wavelength meters to test your WDM signals with the confidence that results from reliable accuracy.
WDM Laser, DFB Laser, and VCSEL Testing
WDM Component Testing
WDM Transmission System Testing
Optical Test Equipment Calibration
and more...
NON-CONTACT THICKNESS MEASUREMENT
The most reliable thickness measurement of plastic films, medical membranes, glass tubing, and ophthalmic products.
Ophthalmic Products (contact and intraocular lenses)
Medical Balloon Catheters, Stents, and Tubing
Specialty Plastic Films and Laminates
Flexible Packaging and Barrier Films
Automotive and Architectural Glass
Optical Lens Stacks
and more...
BURLEIGH PRODUCT SUPPORT
Calibration services and technical support for old Burleigh optical products.
Calibration Services for Burleigh Wavemeter Laser Wavelength Meters
Free Technical Support for Burleigh Wavemeter Laser Wavelength Meters, Fabry-Perot Interferometers, and Laser Spectrum Analyzers
